Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
InterlockableYes
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu250A
Conditioned rated short-circuit current Iq-kA
Number of switches-
Version as maintenance-/service switchNo
Number of poles3
Colour control elementWhite
Rated short-time withstand current lcw3.6kA
Degree of protection (IP), front sideIP20
Rated operating voltage0 - 690V
Type of electrical connection of main circuitBolt connection
Motor drive optionalYes
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Suitable for floor mountingNo
Type of control elementToggle
Suitable for front mounting centreNo
Version as main switchYes
Version as safety switchNo
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Motor drive integratedNo
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V-kW
Voltage release optionalYes
Degree of protection (NEMA)1
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

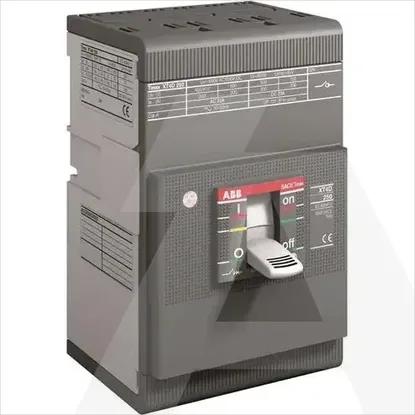

1SDA068212R1 | XT4D 250 3P F F
