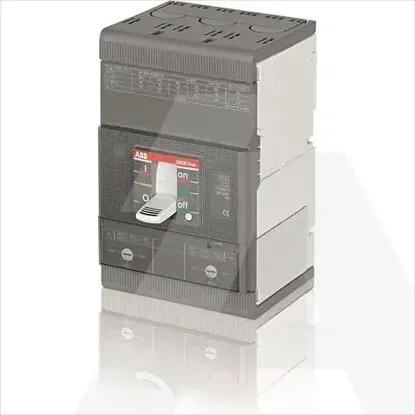

1SDA068312R1 | XT4S 250 TMA 250-2500 3P F F
Code: 1530710
ManufacturerABB
Catalog number1SDA068312R1
TypeXT4S 250 TMA 250-2500 3p F F
Category-
EAN code8015644022181
Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Overload release current setting175.0 - 250A
Number of auxiliary contacts as change-over contact0
Degree of protection (IP)IP20
Type of electrical connection of main circuitBolt connection
Position of connection for main current circuitFront side
Adjustment range undelayed short-circuit release1250 - 2500A
Adjustment range short-term delayed short-circuit release- - -A
Type of control elementToggle
With switched-off indicatorNo
Suitable for DIN rail (top hat rail) mountingNo
Device constructionBuilt-in device fixed built-in technique
With under voltage releaseNo
Motor drive optionalYes
DIN rail (top hat rail) mounting optionalYes
Integrated earth fault protectionNo
Complete device with protection unitYes
Motor drive integratedNo
Rated permanent current Iu250A
Number of poles3
Rated voltage220 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
