Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Suitable for fusesNH1
Rated permanent current Iu200A
Degree of protection (IP), front sideIP30
Type of control elementOther
Type of electrical connection of main circuitBolt connection
Number of poles3
Conditioned rated short-circuit current Iq50kA
Version as main switchYes
Motor drive integratedNo
Version as emergency stop installationNo
Version as safety switchYes
Max. rated operation voltage Ue AC800V
With error protectionNo
Rated operation power at AC-23, 400 V-kW
Suitable for front mountingNo
Suitable for busbar mountingYes
Suitable for floor mountingNo
Rated short-time withstand current lcw-kA
Position control elementFront side
Equipped with connectorsYes
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

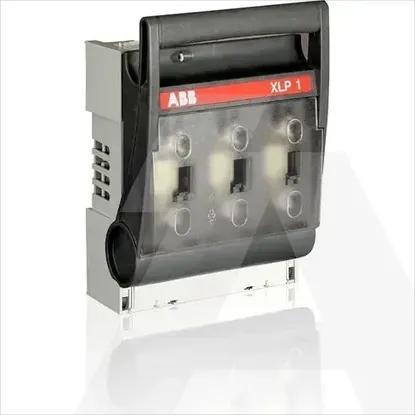

1SEP101891R0001 | XLP1
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Suitable for fuses
NH1
Rated permanent current Iu
200A
Degree of protection (IP), front side
IP30
Type of control element
Other
Type of electrical connection of main circuit
Bolt connection
Number of poles
3
Conditioned rated short-circuit current Iq
50kA
Version as main switch
Motor drive integrated
Version as emergency stop installation
Version as safety switch
Max. rated operation voltage Ue AC
800V
With error protection
Rated operation power at AC-23, 400 V
-kW
Suitable for front mounting
Suitable for busbar mounting
Suitable for floor mounting
Rated short-time withstand current lcw
-kA
Position control element
Front side
Equipped with connectors
Motor drive optional
