Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Number of poles3
Degree of protection (IP), front sideIP30
Rated permanent current Iu500A
Conditioned rated short-circuit current Iq50kA
Suitable for fusesNH3
Version as emergency stop installationNo
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw-kA
Version as safety switchYes
Equipped with connectorsYes
Suitable for floor mountingNo
Version as main switchYes
Motor drive optionalNo
Suitable for busbar mountingYes
Position control elementFront side
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V-kW
Suitable for front mountingNo
With error protectionNo
Type of control elementOther
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

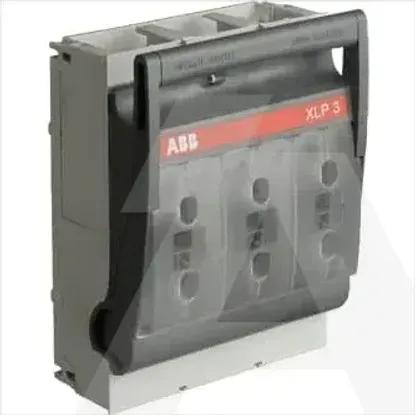

1SEP101975R0001 | XLP3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Number of poles
3
Degree of protection (IP), front side
IP30
Rated permanent current Iu
500A
Conditioned rated short-circuit current Iq
50kA
Suitable for fuses
NH3
Version as emergency stop installation
Motor drive integrated
Type of electrical connection of main circuit
Bolt connection
Rated short-time withstand current lcw
-kA
Version as safety switch
Equipped with connectors
Suitable for floor mounting
Version as main switch
Motor drive optional
Suitable for busbar mounting
Position control element
Front side
Max. rated operation voltage Ue AC
690V
Rated operation power at AC-23, 400 V
-kW
Suitable for front mounting
With error protection
Type of control element
Other
