Details
- •Low-voltage industrial components

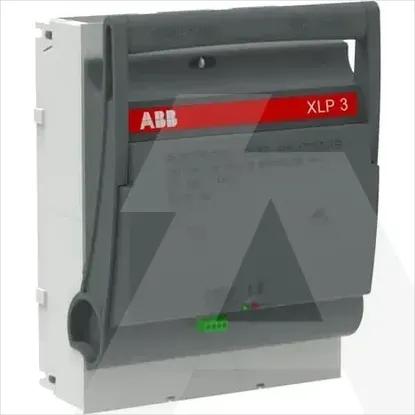

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles3
Rated permanent current Iu500A
Cable entryOther
Suitable for busbar mountingYes
With error protectionNo
Type of control elementOther
Degree of protection (IP), front sideIP30
Motor drive integratedNo
Rated short-time withstand current lcw-kA
Type of electrical connection of main circuitCable clamp
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Position control elementFront side
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V-kW
Version as main switchYes
Suitable for front mountingNo
Equipped with connectorsYes
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq50kA
Suitable for fusesNH3
Version as safety switchYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SEP101975R0012 | XLP3-EFM-6BC
