Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Max. starting current-A
Width12mm
Complete with socketYes
With forced-guided contactsNo
Depth70mm
Height67.5mm
Type of electric connectionScrew connection
Voltage type (operating voltage)AC/DC
Nominal current6A
Drive, switching attitudeMono stable
Type of switch contactSingle contact
Rated control supply voltage Us at AC 60HZ115 - 115V
Rated control supply voltage Us at AC 50HZ115 - 115V
With detachable clampsNo
Material of contact surfaceOther
Drive, polarizationPolarized
Rated control supply voltage Us at DC115 - 115V
Material contactSilver tin oxide (AgSnO2)
Operating voltage at DC- - -V
Operating voltage at AC 60 Hz- - -V
With LED indicationYes
Degree of protection (IP)IP20
Operating voltage at AC 50 Hz- - -V
Number of contacts as change-over contact1
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Voltage type for actuatingAC/DC
Relay technology category according to IEC 61810-7RT I
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

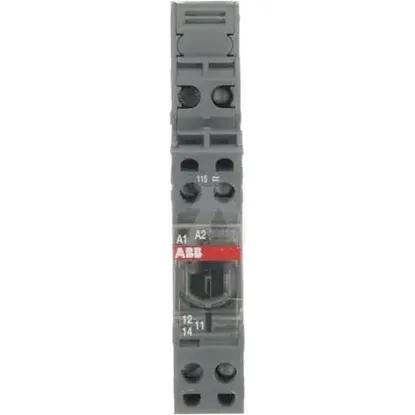

1SNA645046R0700 | RB121AR 115VAC/DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Max. starting current
-A
Width
12mm
Complete with socket
With forced-guided contacts
Depth
70mm
Height
67.5mm
Type of electric connection
Screw connection
Voltage type (operating voltage)
AC/DC
Nominal current
6A
Drive, switching attitude
Mono stable
Type of switch contact
Single contact
Rated control supply voltage Us at AC 60HZ
115 .. 115V
Rated control supply voltage Us at AC 50HZ
115 .. 115V
With detachable clamps
Material of contact surface
Other
Drive, polarization
Polarized
Rated control supply voltage Us at DC
115 .. 115V
Material contact
Silver tin oxide (AgSnO2)
Operating voltage at DC
- .. -V
Operating voltage at AC 60 Hz
- .. -V
With LED indication
Degree of protection (IP)
IP20
Operating voltage at AC 50 Hz
- .. -V
Number of contacts as change-over contact
1
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Voltage type for actuating
AC/DC
Relay technology category according to IEC 61810-7
RT I
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
