Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Height15.7mm
Max. starting current-A
Nominal current16A
Drive, polarizationPolarized
Material of contact surfaceOther
With forced-guided contactsNo
Complete with socketNo
With detachable clampsNo
Rated control supply voltage Us at AC 50HZ- - -V
Type of switch contactSingle contact
Depth29mm
Rated control supply voltage Us at AC 60HZ- - -V
Rated control supply voltage Us at DC24 - 24V
Width12.7mm
Type of electric connectionPlug-in connection
Drive, switching attitudeMono stable
Voltage type (operating voltage)AC/DC
Degree of protection (IP)IP67
With LED indicationNo
Material contactSilver nickel (AgNi)
Operating voltage at AC 60 Hz400 - 400V
Operating voltage at AC 50 Hz400 - 400V
Relay technology category according to IEC 61810-7RT I
Operating voltage at DC- - -V
Number of contacts as normally open contact0
Number of contacts as normally closed contact0
Number of contacts as change-over contact1
Voltage type for actuatingDC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

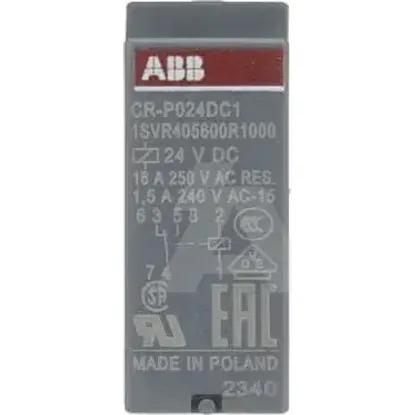

1SVR405600R1000 | CR-P024DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Height
15.7mm
Max. starting current
-A
Nominal current
16A
Drive, polarization
Polarized
Material of contact surface
Other
With forced-guided contacts
Complete with socket
With detachable clamps
Rated control supply voltage Us at AC 50HZ
- .. -V
Type of switch contact
Single contact
Depth
29mm
Rated control supply voltage Us at AC 60HZ
- .. -V
Rated control supply voltage Us at DC
24 .. 24V
Width
12.7mm
Type of electric connection
Plug-in connection
Drive, switching attitude
Mono stable
Voltage type (operating voltage)
AC/DC
Degree of protection (IP)
IP67
With LED indication
Material contact
Silver nickel (AgNi)
Operating voltage at AC 60 Hz
400 .. 400V
Operating voltage at AC 50 Hz
400 .. 400V
Relay technology category according to IEC 61810-7
RT I
Operating voltage at DC
- .. -V
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
1
Voltage type for actuating
DC
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
