Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Nominal current12A
Height35.6mm
Drive, switching attitudeMono stable
With detachable clampsNo
Width21.2mm
Max. starting current-A
With forced-guided contactsNo
Depth27.5mm
Drive, polarizationPolarized
With LED indicationNo
Type of electric connectionPlug-in connection
Type of switch contactSingle contact
Material of contact surfaceOther
Voltage type (operating voltage)AC/DC
Degree of protection (IP)IP40
Rated control supply voltage Us at AC 50HZ24 - 24V
Rated control supply voltage Us at DC- - -V
Complete with socketNo
Rated control supply voltage Us at AC 60HZ24 - 24V
Relay technology category according to IEC 61810-7RT I
Number of contacts as normally open contact0
Material contactSilver nickel (AgNi)
Operating voltage at AC 60 Hz250 - 250V
Number of contacts as change-over contact2
Number of contacts as normally closed contact0
Voltage type for actuatingAC
Operating voltage at DC- - -V
Operating voltage at AC 50 Hz250 - 250V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

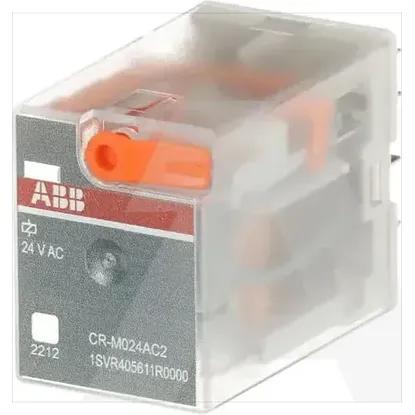

1SVR405611R0000 | CR-M024AC2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Nominal current
12A
Height
35.6mm
Drive, switching attitude
Mono stable
With detachable clamps
Width
21.2mm
Max. starting current
-A
With forced-guided contacts
Depth
27.5mm
Drive, polarization
Polarized
With LED indication
Type of electric connection
Plug-in connection
Type of switch contact
Single contact
Material of contact surface
Other
Voltage type (operating voltage)
AC/DC
Degree of protection (IP)
IP40
Rated control supply voltage Us at AC 50HZ
24 .. 24V
Rated control supply voltage Us at DC
- .. -V
Complete with socket
Rated control supply voltage Us at AC 60HZ
24 .. 24V
Relay technology category according to IEC 61810-7
RT I
Number of contacts as normally open contact
0
Material contact
Silver nickel (AgNi)
Operating voltage at AC 60 Hz
250 .. 250V
Number of contacts as change-over contact
2
Number of contacts as normally closed contact
0
Voltage type for actuating
AC
Operating voltage at DC
- .. -V
Operating voltage at AC 50 Hz
250 .. 250V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
