Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Drive, switching attitudeMono stable
Width21.2mm
Voltage type (operating voltage)AC/DC
Material of contact surfaceOther
With detachable clampsNo
Operating voltage at DC- - -V
Max. starting current-A
Type of switch contactSingle contact
Rated control supply voltage Us at AC 50HZ- - -V
Height35.6mm
Operating voltage at AC 60 Hz250 - 250V
Drive, polarizationPolarized
Degree of protection (IP)IP40
With LED indicationNo
Rated control supply voltage Us at DC48 - 48V
Operating voltage at AC 50 Hz250 - 250V
Rated control supply voltage Us at AC 60HZ- - -V
With forced-guided contactsNo
Depth27.5mm
Material contactSilver nickel (AgNi)
Relay technology category according to IEC 61810-7RT I
Complete with socketNo
Number of contacts as normally closed contact0
Voltage type for actuatingDC
Type of electric connectionPlug-in connection
Nominal current12A
Number of contacts as normally open contact0
Number of contacts as change-over contact2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

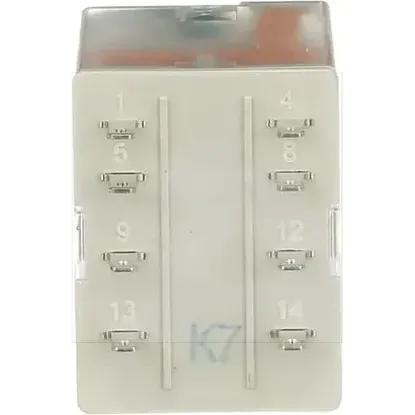

1SVR405611R6000 | CR-M048DC2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Drive, switching attitude
Mono stable
Width
21.2mm
Voltage type (operating voltage)
AC/DC
Material of contact surface
Other
With detachable clamps
Operating voltage at DC
- .. -V
Max. starting current
-A
Type of switch contact
Single contact
Rated control supply voltage Us at AC 50HZ
- .. -V
Height
35.6mm
Operating voltage at AC 60 Hz
250 .. 250V
Drive, polarization
Polarized
Degree of protection (IP)
IP40
With LED indication
Rated control supply voltage Us at DC
48 .. 48V
Operating voltage at AC 50 Hz
250 .. 250V
Rated control supply voltage Us at AC 60HZ
- .. -V
With forced-guided contacts
Depth
27.5mm
Material contact
Silver nickel (AgNi)
Relay technology category according to IEC 61810-7
RT I
Complete with socket
Number of contacts as normally closed contact
0
Voltage type for actuating
DC
Type of electric connection
Plug-in connection
Nominal current
12A
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
