Technical specifications
Drive, switching attitudeMono stable
With forced-guided contactsNo
Width21.2mm
With detachable clampsNo
Max. starting current-A
Rated control supply voltage Us at AC 60HZ- - -V
Height35.6mm
Type of switch contactSingle contact
Depth27.5mm
Drive, polarizationPolarized
Type of electric connectionPlug-in connection
Rated control supply voltage Us at AC 50HZ- - -V
Complete with socketNo
Rated control supply voltage Us at DC125 - 125V
Material of contact surfaceOther
Nominal current12A
Voltage type (operating voltage)AC/DC
Degree of protection (IP)IP40
With LED indicationYes
Operating voltage at AC 60 Hz250 - 250V
Voltage type for actuatingDC
Operating voltage at AC 50 Hz250 - 250V
Material contactSilver nickel (AgNi)
Relay technology category according to IEC 61810-7RT I
Number of contacts as change-over contact2
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Operating voltage at DC- - -V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

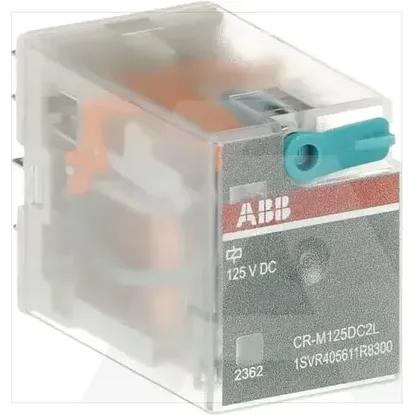

1SVR405611R8300 | CR-M125DC2L
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Drive, switching attitude
Mono stable
With forced-guided contacts
Width
21.2mm
With detachable clamps
Max. starting current
-A
Rated control supply voltage Us at AC 60HZ
- .. -V
Height
35.6mm
Type of switch contact
Single contact
Depth
27.5mm
Drive, polarization
Polarized
Type of electric connection
Plug-in connection
Rated control supply voltage Us at AC 50HZ
- .. -V
Complete with socket
Rated control supply voltage Us at DC
125 .. 125V
Material of contact surface
Other
Nominal current
12A
Voltage type (operating voltage)
AC/DC
Degree of protection (IP)
IP40
With LED indication
Operating voltage at AC 60 Hz
250 .. 250V
Voltage type for actuating
DC
Operating voltage at AC 50 Hz
250 .. 250V
Material contact
Silver nickel (AgNi)
Relay technology category according to IEC 61810-7
RT I
Number of contacts as change-over contact
2
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Operating voltage at DC
- .. -V
