Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Nominal current10A
Width21.2mm
Depth27.5mm
Drive, polarizationPolarized
Max. starting current-A
Height35.6mm
Complete with socketNo
Type of switch contactSingle contact
Drive, switching attitudeMono stable
With detachable clampsNo
With forced-guided contactsNo
Type of electric connectionPlug-in connection
With LED indicationNo
Material of contact surfaceOther
Operating voltage at AC 50 Hz250 - 250V
Rated control supply voltage Us at AC 60HZ24 - 24V
Operating voltage at DC- - -V
Number of contacts as normally open contact0
Voltage type for actuatingAC
Number of contacts as normally closed contact0
Voltage type (operating voltage)AC/DC
Rated control supply voltage Us at DC- - -V
Operating voltage at AC 60 Hz250 - 250V
Material contactSilver nickel (AgNi)
Degree of protection (IP)IP40
Number of contacts as change-over contact3
Rated control supply voltage Us at AC 50HZ24 - 24V
Relay technology category according to IEC 61810-7RT I
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

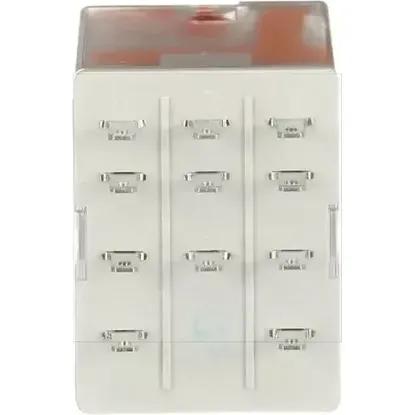

1SVR405612R0000 | CR-M024AC3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Nominal current
10A
Width
21.2mm
Depth
27.5mm
Drive, polarization
Polarized
Max. starting current
-A
Height
35.6mm
Complete with socket
Type of switch contact
Single contact
Drive, switching attitude
Mono stable
With detachable clamps
With forced-guided contacts
Type of electric connection
Plug-in connection
With LED indication
Material of contact surface
Other
Operating voltage at AC 50 Hz
250 .. 250V
Rated control supply voltage Us at AC 60HZ
24 .. 24V
Operating voltage at DC
- .. -V
Number of contacts as normally open contact
0
Voltage type for actuating
AC
Number of contacts as normally closed contact
0
Voltage type (operating voltage)
AC/DC
Rated control supply voltage Us at DC
- .. -V
Operating voltage at AC 60 Hz
250 .. 250V
Material contact
Silver nickel (AgNi)
Degree of protection (IP)
IP40
Number of contacts as change-over contact
3
Rated control supply voltage Us at AC 50HZ
24 .. 24V
Relay technology category according to IEC 61810-7
RT I
