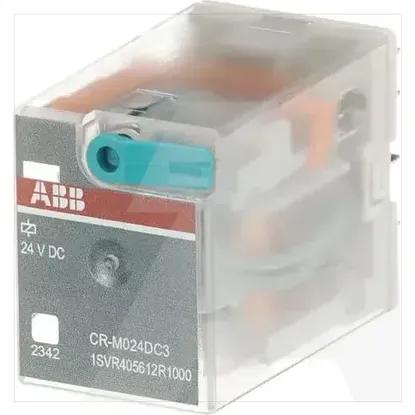

1SVR405612R1000 | CR-M024DC3
Code: 1543098
ManufacturerABB
Catalog number1SVR405612R1000
TypeCR-M024DC3
CategorySwitching relay
EAN code4013614497469
Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Width21.2mm
Material of contact surfaceOther
Max. starting current-A
Drive, switching attitudeMono stable
Height35.6mm
Type of switch contactSingle contact
Rated control supply voltage Us at DC24 - 24V
Degree of protection (IP)IP40
Voltage type (operating voltage)AC/DC
Depth27.5mm
Rated control supply voltage Us at AC 60HZ- - -V
With detachable clampsNo
Drive, polarizationPolarized
Operating voltage at DC- - -V
Operating voltage at AC 50 Hz250 - 250V
Operating voltage at AC 60 Hz250 - 250V
Number of contacts as normally open contact0
Number of contacts as normally closed contact0
Material contactSilver nickel (AgNi)
With forced-guided contactsNo
Relay technology category according to IEC 61810-7RT I
Complete with socketNo
Type of electric connectionPlug-in connection
With LED indicationNo
Nominal current10A
Rated control supply voltage Us at AC 50HZ- - -V
Voltage type for actuatingDC
Number of contacts as change-over contact3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SVR405612R1000 | CR-M024DC3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width
21.2mm
Material of contact surface
Other
Max. starting current
-A
Drive, switching attitude
Mono stable
Height
35.6mm
Type of switch contact
Single contact
Rated control supply voltage Us at DC
24 .. 24V
Degree of protection (IP)
IP40
Voltage type (operating voltage)
AC/DC
Depth
27.5mm
Rated control supply voltage Us at AC 60HZ
- .. -V
With detachable clamps
Drive, polarization
Polarized
Operating voltage at DC
- .. -V
Operating voltage at AC 50 Hz
250 .. 250V
Operating voltage at AC 60 Hz
250 .. 250V
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Material contact
Silver nickel (AgNi)
With forced-guided contacts
Relay technology category according to IEC 61810-7
RT I
Complete with socket
Type of electric connection
Plug-in connection
With LED indication
Nominal current
10A
Rated control supply voltage Us at AC 50HZ
- .. -V
Voltage type for actuating
DC
Number of contacts as change-over contact
3
