Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Nominal current10A
Height35.6mm
Width21.2mm
Drive, polarizationPolarized
Max. starting current-A
Drive, switching attitudeMono stable
Depth27.5mm
With detachable clampsNo
With forced-guided contactsNo
Rated control supply voltage Us at AC 50HZ110 - 110V
Material of contact surfaceOther
Type of switch contactSingle contact
Rated control supply voltage Us at DC- - -V
Voltage type for actuatingAC
Voltage type (operating voltage)AC/DC
Degree of protection (IP)IP40
Type of electric connectionPlug-in connection
Operating voltage at DC- - -V
Operating voltage at AC 50 Hz250 - 250V
With LED indicationNo
Number of contacts as normally open contact0
Operating voltage at AC 60 Hz250 - 250V
Rated control supply voltage Us at AC 60HZ110 - 110V
Complete with socketNo
Number of contacts as normally closed contact0
Material contactSilver nickel (AgNi)
Relay technology category according to IEC 61810-7RT I
Number of contacts as change-over contact3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

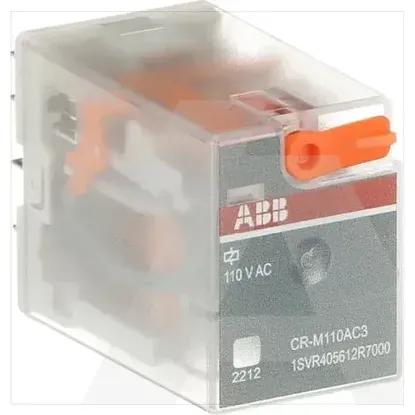

1SVR405612R7000 | CR-M110AC3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Nominal current
10A
Height
35.6mm
Width
21.2mm
Drive, polarization
Polarized
Max. starting current
-A
Drive, switching attitude
Mono stable
Depth
27.5mm
With detachable clamps
With forced-guided contacts
Rated control supply voltage Us at AC 50HZ
110 .. 110V
Material of contact surface
Other
Type of switch contact
Single contact
Rated control supply voltage Us at DC
- .. -V
Voltage type for actuating
AC
Voltage type (operating voltage)
AC/DC
Degree of protection (IP)
IP40
Type of electric connection
Plug-in connection
Operating voltage at DC
- .. -V
Operating voltage at AC 50 Hz
250 .. 250V
With LED indication
Number of contacts as normally open contact
0
Operating voltage at AC 60 Hz
250 .. 250V
Rated control supply voltage Us at AC 60HZ
110 .. 110V
Complete with socket
Number of contacts as normally closed contact
0
Material contact
Silver nickel (AgNi)
Relay technology category according to IEC 61810-7
RT I
Number of contacts as change-over contact
3
