Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Width21.2mm
Max. starting current-A
With detachable clampsNo
With forced-guided contactsNo
Height35.6mm
Drive, polarizationPolarized
Drive, switching attitudeMono stable
Depth27.5mm
Complete with socketNo
Rated control supply voltage Us at DC125 - 125V
Type of switch contactSingle contact
Rated control supply voltage Us at AC 60HZ- - -V
With LED indicationNo
Material of contact surfaceOther
Voltage type (operating voltage)AC/DC
Operating voltage at AC 60 Hz250 - 250V
Operating voltage at DC- - -V
Rated control supply voltage Us at AC 50HZ- - -V
Material contactSilver nickel (AgNi)
Degree of protection (IP)IP40
Operating voltage at AC 50 Hz250 - 250V
Relay technology category according to IEC 61810-7RT I
Type of electric connectionPlug-in connection
Voltage type for actuatingDC
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Number of contacts as change-over contact3
Nominal current10A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

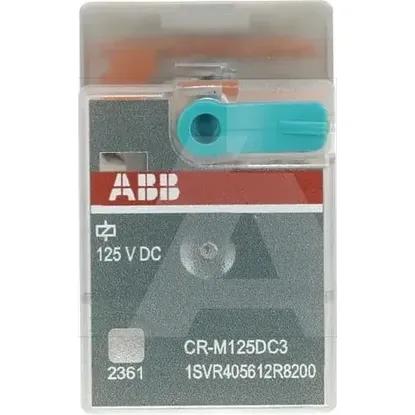

1SVR405612R8200 | CR-M125DC3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width
21.2mm
Max. starting current
-A
With detachable clamps
With forced-guided contacts
Height
35.6mm
Drive, polarization
Polarized
Drive, switching attitude
Mono stable
Depth
27.5mm
Complete with socket
Rated control supply voltage Us at DC
125 .. 125V
Type of switch contact
Single contact
Rated control supply voltage Us at AC 60HZ
- .. -V
With LED indication
Material of contact surface
Other
Voltage type (operating voltage)
AC/DC
Operating voltage at AC 60 Hz
250 .. 250V
Operating voltage at DC
- .. -V
Rated control supply voltage Us at AC 50HZ
- .. -V
Material contact
Silver nickel (AgNi)
Degree of protection (IP)
IP40
Operating voltage at AC 50 Hz
250 .. 250V
Relay technology category according to IEC 61810-7
RT I
Type of electric connection
Plug-in connection
Voltage type for actuating
DC
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
3
Nominal current
10A
