Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Nominal current10A
Width21.2mm
Depth27.5mm
With forced-guided contactsNo
Max. starting current-A
Height35.6mm
With LED indicationYes
Operating voltage at DC- - -V
Number of contacts as normally closed contact0
Degree of protection (IP)IP40
Material contactSilver nickel (AgNi)
Rated control supply voltage Us at AC 60HZ- - -V
Operating voltage at AC 50 Hz250 - 250V
Complete with socketNo
Rated control supply voltage Us at DC125 - 125V
Drive, switching attitudeMono stable
Voltage type for actuatingDC
Material of contact surfaceOther
Voltage type (operating voltage)AC/DC
Type of electric connectionPlug-in connection
Rated control supply voltage Us at AC 50HZ- - -V
Drive, polarizationPolarized
With detachable clampsNo
Type of switch contactSingle contact
Operating voltage at AC 60 Hz250 - 250V
Relay technology category according to IEC 61810-7RT I
Number of contacts as change-over contact3
Number of contacts as normally open contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

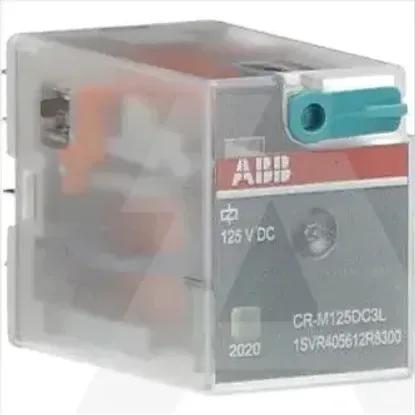

1SVR405612R8300 | CR-M125DC3L
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Nominal current
10A
Width
21.2mm
Depth
27.5mm
With forced-guided contacts
Max. starting current
-A
Height
35.6mm
With LED indication
Operating voltage at DC
- .. -V
Number of contacts as normally closed contact
0
Degree of protection (IP)
IP40
Material contact
Silver nickel (AgNi)
Rated control supply voltage Us at AC 60HZ
- .. -V
Operating voltage at AC 50 Hz
250 .. 250V
Complete with socket
Rated control supply voltage Us at DC
125 .. 125V
Drive, switching attitude
Mono stable
Voltage type for actuating
DC
Material of contact surface
Other
Voltage type (operating voltage)
AC/DC
Type of electric connection
Plug-in connection
Rated control supply voltage Us at AC 50HZ
- .. -V
Drive, polarization
Polarized
With detachable clamps
Type of switch contact
Single contact
Operating voltage at AC 60 Hz
250 .. 250V
Relay technology category according to IEC 61810-7
RT I
Number of contacts as change-over contact
3
Number of contacts as normally open contact
0
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
