Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Drive, switching attitudeMono stable
Nominal current6A
With detachable clampsNo
Max. starting current-A
Width21.2mm
Drive, polarizationPolarized
Depth27.5mm
Height35.6mm
With forced-guided contactsNo
Complete with socketNo
Type of electric connectionPlug-in connection
Type of switch contactSingle contact
Material of contact surfaceOther
Rated control supply voltage Us at AC 60HZ120 - 120V
Operating voltage at AC 50 Hz250 - 250V
Rated control supply voltage Us at AC 50HZ120 - 120V
Operating voltage at AC 60 Hz250 - 250V
Relay technology category according to IEC 61810-7RT I
Voltage type (operating voltage)AC/DC
Number of contacts as normally open contact0
Degree of protection (IP)IP40
Material contactSilver nickel (AgNi)
Operating voltage at DC- - -V
Rated control supply voltage Us at DC- - -V
Number of contacts as change-over contact4
Voltage type for actuatingAC
Number of contacts as normally closed contact0
With LED indicationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

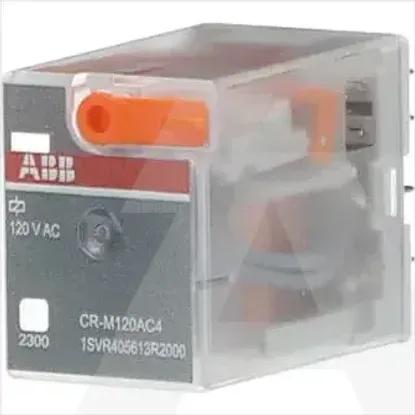

1SVR405613R2000 | CR-M120AC4
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Drive, switching attitude
Mono stable
Nominal current
6A
With detachable clamps
Max. starting current
-A
Width
21.2mm
Drive, polarization
Polarized
Depth
27.5mm
Height
35.6mm
With forced-guided contacts
Complete with socket
Type of electric connection
Plug-in connection
Type of switch contact
Single contact
Material of contact surface
Other
Rated control supply voltage Us at AC 60HZ
120 .. 120V
Operating voltage at AC 50 Hz
250 .. 250V
Rated control supply voltage Us at AC 50HZ
120 .. 120V
Operating voltage at AC 60 Hz
250 .. 250V
Relay technology category according to IEC 61810-7
RT I
Voltage type (operating voltage)
AC/DC
Number of contacts as normally open contact
0
Degree of protection (IP)
IP40
Material contact
Silver nickel (AgNi)
Operating voltage at DC
- .. -V
Rated control supply voltage Us at DC
- .. -V
Number of contacts as change-over contact
4
Voltage type for actuating
AC
Number of contacts as normally closed contact
0
With LED indication
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
