Details
- •Relays
- •Switching relay
- •10 KOM
- •ABB
Technical specifications
Width21.2mm
Height35.6mm
Max. starting current-A
Depth27.5mm
Nominal current6A
With detachable clampsNo
Drive, polarizationPolarized
Drive, switching attitudeMono stable
With forced-guided contactsNo
Type of switch contactSingle contact
Complete with socketNo
Rated control supply voltage Us at DC24 - 24V
Operating voltage at DC- - -V
Rated control supply voltage Us at AC 60HZ- - -V
Number of contacts as change-over contact4
Degree of protection (IP)IP40
Operating voltage at AC 50 Hz250 - 250V
Rated control supply voltage Us at AC 50HZ- - -V
Voltage type (operating voltage)AC/DC
Type of electric connectionPlug-in connection
Voltage type for actuatingDC
Operating voltage at AC 60 Hz250 - 250V
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
With LED indicationYes
Material of contact surfaceOther
Relay technology category according to IEC 61810-7RT I
Material contactSilver nickel (AgNi)
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

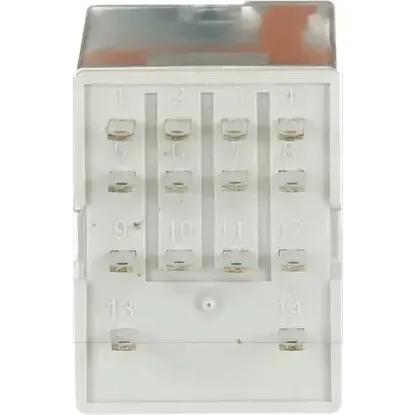

1SVR405618R1400 | CR-M024DC4LDG
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 10 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width
21.2mm
Height
35.6mm
Max. starting current
-A
Depth
27.5mm
Nominal current
6A
With detachable clamps
Drive, polarization
Polarized
Drive, switching attitude
Mono stable
With forced-guided contacts
Type of switch contact
Single contact
Complete with socket
Rated control supply voltage Us at DC
24 .. 24V
Operating voltage at DC
- .. -V
Rated control supply voltage Us at AC 60HZ
- .. -V
Number of contacts as change-over contact
4
Degree of protection (IP)
IP40
Operating voltage at AC 50 Hz
250 .. 250V
Rated control supply voltage Us at AC 50HZ
- .. -V
Voltage type (operating voltage)
AC/DC
Type of electric connection
Plug-in connection
Voltage type for actuating
DC
Operating voltage at AC 60 Hz
250 .. 250V
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
With LED indication
Material of contact surface
Other
Relay technology category according to IEC 61810-7
RT I
Material contact
Silver nickel (AgNi)
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
