Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Width21.2mm
Nominal current6A
Height35.6mm
Depth27.5mm
Voltage type (operating voltage)AC/DC
Drive, switching attitudeMono stable
Drive, polarizationPolarized
Type of electric connectionPlug-in connection
Rated control supply voltage Us at DC125 - 125V
Degree of protection (IP)IP40
Type of switch contactSingle contact
With forced-guided contactsNo
Operating voltage at AC 60 Hz250 - 250V
Number of contacts as normally closed contact0
Rated control supply voltage Us at AC 50HZ- - -V
Material of contact surfaceOther
Number of contacts as change-over contact4
Operating voltage at AC 50 Hz250 - 250V
Material contactSilver nickel (AgNi)
Number of contacts as normally open contact0
Operating voltage at DC- - -V
Rated control supply voltage Us at AC 60HZ- - -V
With LED indicationYes
Voltage type for actuatingDC
With detachable clampsNo
Max. starting current-A
Relay technology category according to IEC 61810-7RT I
Complete with socketNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

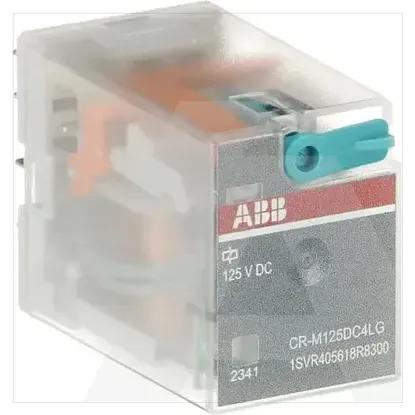

1SVR405618R8300 | CR-M125DC4LG
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width
21.2mm
Nominal current
6A
Height
35.6mm
Depth
27.5mm
Voltage type (operating voltage)
AC/DC
Drive, switching attitude
Mono stable
Drive, polarization
Polarized
Type of electric connection
Plug-in connection
Rated control supply voltage Us at DC
125 .. 125V
Degree of protection (IP)
IP40
Type of switch contact
Single contact
With forced-guided contacts
Operating voltage at AC 60 Hz
250 .. 250V
Number of contacts as normally closed contact
0
Rated control supply voltage Us at AC 50HZ
- .. -V
Material of contact surface
Other
Number of contacts as change-over contact
4
Operating voltage at AC 50 Hz
250 .. 250V
Material contact
Silver nickel (AgNi)
Number of contacts as normally open contact
0
Operating voltage at DC
- .. -V
Rated control supply voltage Us at AC 60HZ
- .. -V
With LED indication
Voltage type for actuating
DC
With detachable clamps
Max. starting current
-A
Relay technology category according to IEC 61810-7
RT I
Complete with socket
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
