Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Nominal current10A
Depth35mm
Max. starting current-A
Drive, switching attitudeMono stable
With detachable clampsNo
With forced-guided contactsNo
Width35mm
Height54.4mm
Drive, polarizationPolarized
Voltage type (operating voltage)AC/DC
Type of electric connectionPlug-in connection
Rated control supply voltage Us at AC 50HZ110 - 110V
Material of contact surfaceOther
Degree of protection (IP)IP40
Type of switch contactSingle contact
Complete with socketNo
Operating voltage at DC- - -V
Number of contacts as normally closed contact0
Rated control supply voltage Us at AC 60HZ110 - 110V
Number of contacts as normally open contact0
Operating voltage at AC 50 Hz250 - 250V
Operating voltage at AC 60 Hz250 - 250V
Material contactSilver nickel (AgNi)
Number of contacts as change-over contact2
Rated control supply voltage Us at DC- - -V
With LED indicationNo
Voltage type for actuatingAC
Relay technology category according to IEC 61810-7RT I
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

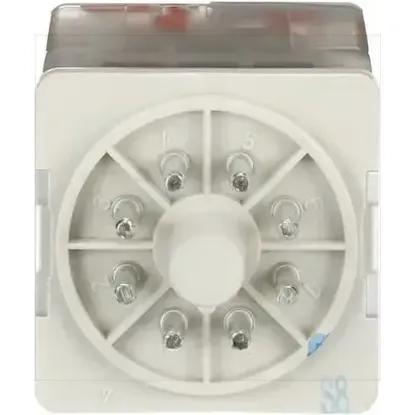

1SVR405621R7000 | CR-U110AC2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Nominal current
10A
Depth
35mm
Max. starting current
-A
Drive, switching attitude
Mono stable
With detachable clamps
With forced-guided contacts
Width
35mm
Height
54.4mm
Drive, polarization
Polarized
Voltage type (operating voltage)
AC/DC
Type of electric connection
Plug-in connection
Rated control supply voltage Us at AC 50HZ
110 .. 110V
Material of contact surface
Other
Degree of protection (IP)
IP40
Type of switch contact
Single contact
Complete with socket
Operating voltage at DC
- .. -V
Number of contacts as normally closed contact
0
Rated control supply voltage Us at AC 60HZ
110 .. 110V
Number of contacts as normally open contact
0
Operating voltage at AC 50 Hz
250 .. 250V
Operating voltage at AC 60 Hz
250 .. 250V
Material contact
Silver nickel (AgNi)
Number of contacts as change-over contact
2
Rated control supply voltage Us at DC
- .. -V
With LED indication
Voltage type for actuating
AC
Relay technology category according to IEC 61810-7
RT I
