Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Nominal current10A
Max. starting current-A
Depth35mm
Width35mm
Height54.4mm
With detachable clampsNo
Material of contact surfaceOther
Material contactSilver nickel (AgNi)
Rated control supply voltage Us at AC 50HZ- - -V
Rated control supply voltage Us at AC 60HZ- - -V
Type of switch contactSingle contact
Rated control supply voltage Us at DC24 - 24V
Degree of protection (IP)IP40
Operating voltage at AC 50 Hz250 - 250V
Drive, polarizationPolarized
Operating voltage at AC 60 Hz250 - 250V
Operating voltage at DC- - -V
Relay technology category according to IEC 61810-7RT I
Voltage type (operating voltage)AC/DC
Complete with socketNo
With LED indicationNo
Type of electric connectionPlug-in connection
Number of contacts as normally closed contact0
Voltage type for actuatingDC
With forced-guided contactsNo
Number of contacts as change-over contact3
Number of contacts as normally open contact0
Drive, switching attitudeMono stable
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

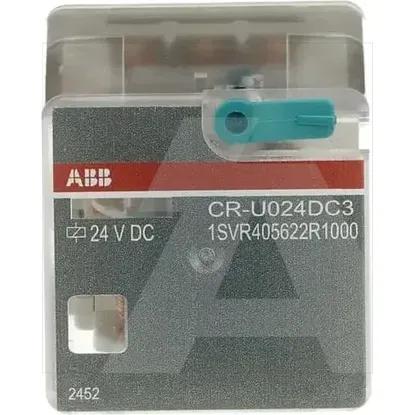

1SVR405622R1000 | CR-U024DC3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Nominal current
10A
Max. starting current
-A
Depth
35mm
Width
35mm
Height
54.4mm
With detachable clamps
Material of contact surface
Other
Material contact
Silver nickel (AgNi)
Rated control supply voltage Us at AC 50HZ
- .. -V
Rated control supply voltage Us at AC 60HZ
- .. -V
Type of switch contact
Single contact
Rated control supply voltage Us at DC
24 .. 24V
Degree of protection (IP)
IP40
Operating voltage at AC 50 Hz
250 .. 250V
Drive, polarization
Polarized
Operating voltage at AC 60 Hz
250 .. 250V
Operating voltage at DC
- .. -V
Relay technology category according to IEC 61810-7
RT I
Voltage type (operating voltage)
AC/DC
Complete with socket
With LED indication
Type of electric connection
Plug-in connection
Number of contacts as normally closed contact
0
Voltage type for actuating
DC
With forced-guided contacts
Number of contacts as change-over contact
3
Number of contacts as normally open contact
0
Drive, switching attitude
Mono stable
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
