Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Complete with socketNo
Nominal current10A
Material of contact surfaceOther
Type of switch contactSingle contact
With forced-guided contactsNo
Drive, polarizationPolarized
Rated control supply voltage Us at AC 50HZ230 - 230V
Depth35mm
Type of electric connectionPlug-in connection
Max. starting current-A
Rated control supply voltage Us at AC 60HZ230 - 230V
Width35mm
Voltage type (operating voltage)AC/DC
Height54.4mm
With detachable clampsNo
Drive, switching attitudeMono stable
Rated control supply voltage Us at DC- - -V
Degree of protection (IP)IP40
Material contactSilver nickel (AgNi)
Operating voltage at AC 50 Hz250 - 250V
With LED indicationYes
Operating voltage at AC 60 Hz250 - 250V
Voltage type for actuatingAC
Number of contacts as normally closed contact0
Relay technology category according to IEC 61810-7RT I
Operating voltage at DC- - -V
Number of contacts as normally open contact0
Number of contacts as change-over contact3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

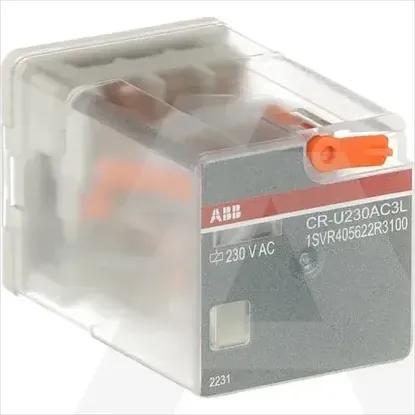

1SVR405622R3100 | CR-U230AC3L
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Complete with socket
Nominal current
10A
Material of contact surface
Other
Type of switch contact
Single contact
With forced-guided contacts
Drive, polarization
Polarized
Rated control supply voltage Us at AC 50HZ
230 .. 230V
Depth
35mm
Type of electric connection
Plug-in connection
Max. starting current
-A
Rated control supply voltage Us at AC 60HZ
230 .. 230V
Width
35mm
Voltage type (operating voltage)
AC/DC
Height
54.4mm
With detachable clamps
Drive, switching attitude
Mono stable
Rated control supply voltage Us at DC
- .. -V
Degree of protection (IP)
IP40
Material contact
Silver nickel (AgNi)
Operating voltage at AC 50 Hz
250 .. 250V
With LED indication
Operating voltage at AC 60 Hz
250 .. 250V
Voltage type for actuating
AC
Number of contacts as normally closed contact
0
Relay technology category according to IEC 61810-7
RT I
Operating voltage at DC
- .. -V
Number of contacts as normally open contact
0
Number of contacts as change-over contact
3
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
