Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Drive, polarizationPolarized
Max. starting current-A
With detachable clampsNo
With forced-guided contactsNo
Width35mm
Height54.4mm
Depth35mm
Drive, switching attitudeMono stable
Type of switch contactSingle contact
Rated control supply voltage Us at AC 60HZ- - -V
Rated control supply voltage Us at AC 50HZ- - -V
Degree of protection (IP)IP40
Operating voltage at AC 50 Hz250 - 250V
Material of contact surfaceOther
Operating voltage at AC 60 Hz250 - 250V
Complete with socketNo
Rated control supply voltage Us at DC12 - 12V
Material contactSilver nickel (AgNi)
Operating voltage at DC- - -V
Number of contacts as normally open contact0
Relay technology category according to IEC 61810-7RT I
Number of contacts as normally closed contact0
Voltage type (operating voltage)AC/DC
With LED indicationNo
Type of electric connectionPlug-in connection
Voltage type for actuatingDC
Number of contacts as change-over contact3
Nominal current10A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

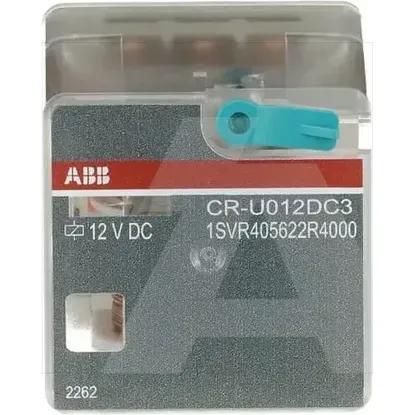

1SVR405622R4000 | CR-U012DC3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Drive, polarization
Polarized
Max. starting current
-A
With detachable clamps
With forced-guided contacts
Width
35mm
Height
54.4mm
Depth
35mm
Drive, switching attitude
Mono stable
Type of switch contact
Single contact
Rated control supply voltage Us at AC 60HZ
- .. -V
Rated control supply voltage Us at AC 50HZ
- .. -V
Degree of protection (IP)
IP40
Operating voltage at AC 50 Hz
250 .. 250V
Material of contact surface
Other
Operating voltage at AC 60 Hz
250 .. 250V
Complete with socket
Rated control supply voltage Us at DC
12 .. 12V
Material contact
Silver nickel (AgNi)
Operating voltage at DC
- .. -V
Number of contacts as normally open contact
0
Relay technology category according to IEC 61810-7
RT I
Number of contacts as normally closed contact
0
Voltage type (operating voltage)
AC/DC
With LED indication
Type of electric connection
Plug-in connection
Voltage type for actuating
DC
Number of contacts as change-over contact
3
Nominal current
10A
