Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Drive, switching attitudeMono stable
Width35mm
Height54.4mm
With detachable clampsNo
Max. starting current-A
Drive, polarizationPolarized
Depth35mm
Complete with socketNo
With forced-guided contactsNo
Rated control supply voltage Us at AC 50HZ- - -V
Rated control supply voltage Us at DC48 - 48V
Rated control supply voltage Us at AC 60HZ- - -V
Type of switch contactSingle contact
Material of contact surfaceOther
Voltage type (operating voltage)AC/DC
Degree of protection (IP)IP40
Number of contacts as normally open contact0
Operating voltage at DC- - -V
Operating voltage at AC 60 Hz250 - 250V
Operating voltage at AC 50 Hz250 - 250V
Number of contacts as normally closed contact0
Relay technology category according to IEC 61810-7RT I
Type of electric connectionPlug-in connection
With LED indicationYes
Number of contacts as change-over contact3
Voltage type for actuatingDC
Nominal current10A
Material contactSilver nickel (AgNi)
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

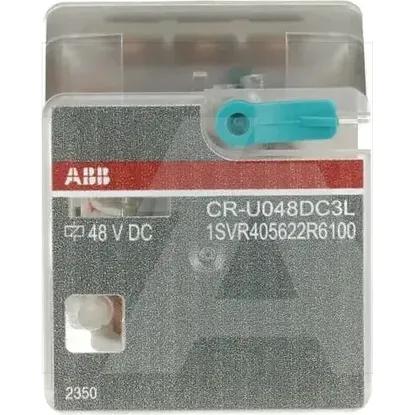

1SVR405622R6100 | CR-U048DC3L
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Drive, switching attitude
Mono stable
Width
35mm
Height
54.4mm
With detachable clamps
Max. starting current
-A
Drive, polarization
Polarized
Depth
35mm
Complete with socket
With forced-guided contacts
Rated control supply voltage Us at AC 50HZ
- .. -V
Rated control supply voltage Us at DC
48 .. 48V
Rated control supply voltage Us at AC 60HZ
- .. -V
Type of switch contact
Single contact
Material of contact surface
Other
Voltage type (operating voltage)
AC/DC
Degree of protection (IP)
IP40
Number of contacts as normally open contact
0
Operating voltage at DC
- .. -V
Operating voltage at AC 60 Hz
250 .. 250V
Operating voltage at AC 50 Hz
250 .. 250V
Number of contacts as normally closed contact
0
Relay technology category according to IEC 61810-7
RT I
Type of electric connection
Plug-in connection
With LED indication
Number of contacts as change-over contact
3
Voltage type for actuating
DC
Nominal current
10A
Material contact
Silver nickel (AgNi)
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
