Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Nominal current10A
Depth35mm
Height54.4mm
Width35mm
Max. starting current-A
Voltage type for actuatingDC
With detachable clampsNo
Drive, switching attitudeMono stable
Rated control supply voltage Us at DC110 - 110V
Material of contact surfaceOther
With LED indicationNo
Operating voltage at AC 60 Hz250 - 250V
Drive, polarizationPolarized
Operating voltage at DC- - -V
Type of electric connectionPlug-in connection
Material contactSilver nickel (AgNi)
With forced-guided contactsNo
Voltage type (operating voltage)AC/DC
Rated control supply voltage Us at AC 50HZ- - -V
Complete with socketNo
Operating voltage at AC 50 Hz250 - 250V
Degree of protection (IP)IP40
Type of switch contactSingle contact
Rated control supply voltage Us at AC 60HZ- - -V
Number of contacts as normally open contact0
Relay technology category according to IEC 61810-7RT I
Number of contacts as change-over contact3
Number of contacts as normally closed contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

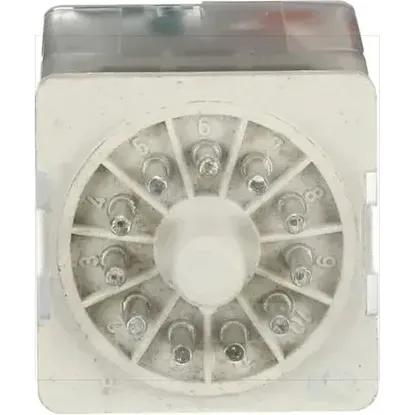

1SVR405622R8000 | CR-U110DC3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Nominal current
10A
Depth
35mm
Height
54.4mm
Width
35mm
Max. starting current
-A
Voltage type for actuating
DC
With detachable clamps
Drive, switching attitude
Mono stable
Rated control supply voltage Us at DC
110 .. 110V
Material of contact surface
Other
With LED indication
Operating voltage at AC 60 Hz
250 .. 250V
Drive, polarization
Polarized
Operating voltage at DC
- .. -V
Type of electric connection
Plug-in connection
Material contact
Silver nickel (AgNi)
With forced-guided contacts
Voltage type (operating voltage)
AC/DC
Rated control supply voltage Us at AC 50HZ
- .. -V
Complete with socket
Operating voltage at AC 50 Hz
250 .. 250V
Degree of protection (IP)
IP40
Type of switch contact
Single contact
Rated control supply voltage Us at AC 60HZ
- .. -V
Number of contacts as normally open contact
0
Relay technology category according to IEC 61810-7
RT I
Number of contacts as change-over contact
3
Number of contacts as normally closed contact
0
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
