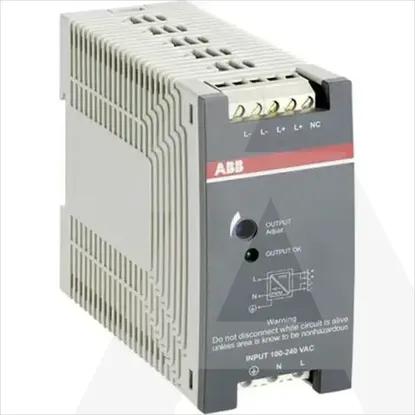

Details
- •Low-voltage switchgear and control gear (automation)
- •DC-power supply
- •1 KOM
- •ABB
Technical specifications
Height90mm
Width40.5mm
Depth114mm
Built-in height90mm
Width in number of modular spacings-
Power consumption69.2VA
Wall mounting possibleNo
Suitable for safety functionsNo
Direct mounting possibleNo
2nd secondary output voltage0 - 0V
Type of electric connectionScrew connection
1st secondary output voltage24 - 24V
Degree of protection (IP)IP20
Built-in width40.5mm
Modular versionNo
Voltage type of supply voltageAC/DC
Rated supply voltage at DC90 - 375V
Max. output current 20A
Rated supply voltage at AC 60 Hz85 - 264V
3rd secondary output voltage0 - 0V
Performance level according to EN ISO 13849-1None
Rated supply voltage at AC 50 Hz85 - 264V
Short-circuit-proofYes
Max. output current 30A
SIL according to IEC 61508None
Nominal value output current 20A
Degree of protection (NEMA)1
Nominal value output voltage 20V
Nominal value output current 30A
Nominal value output voltage 30V
Power output60W
Output voltage stabilizedYes
Rail mounting possibleYes
StabilizedYes
Secondary voltage adjustableYes
Max. output current 12.5A
Nominal value output voltage 124V
Nominal value output current 12.5A
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SVR427032R0000 | CP-E 24/2.5
