Details
- •Low-voltage switchgear and control gear (automation)
- •DC-power supply
- •1 KOM
- •ABB
Technical specifications
Power consumption13VA
Height91mm
Wall mounting possibleNo
Output voltage stabilizedYes
Built-in width18mm
Suitable for safety functionsNo
Built-in height91mm
Depth57.5mm
Modular versionYes
2nd secondary output voltage0 - 0V
Degree of protection (IP)IP20
1st secondary output voltage12 - 12V
Direct mounting possibleNo
StabilizedYes
Rated supply voltage at DC120 - 375V
Rated supply voltage at AC 50 Hz90 - 264V
Rated supply voltage at AC 60 Hz90 - 264V
Nominal value output voltage 30V
Max. output current 20A
Nominal value output current 20A
Max. output current 30A
Degree of protection (NEMA)1
Short-circuit-proofYes
3rd secondary output voltage0 - 0V
Nominal value output current 30A
SIL according to IEC 61508None
Secondary voltage adjustableNo
Nominal value output voltage 20V
Performance level according to EN ISO 13849-1None
Voltage type of supply voltageAC/DC
Max. output current 10.83A
Type of electric connectionScrew connection
Nominal value output voltage 112V
Nominal value output current 10.83A
Power output10W
Rail mounting possibleYes
Width in number of modular spacings1
Width18mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

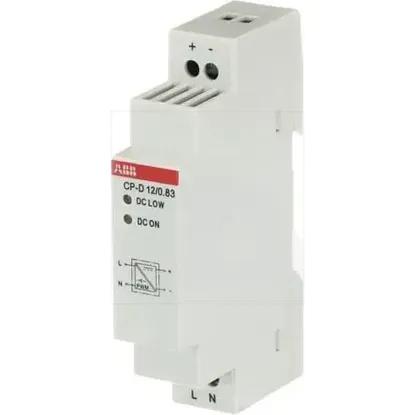

1SVR427041R1000 | CP-D 12/0.83
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage switchgear and control gear (automation)
- DC-power supply
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Power consumption
13VA
Height
91mm
Wall mounting possible
Output voltage stabilized
Built-in width
18mm
Suitable for safety functions
Built-in height
91mm
Depth
57.5mm
Modular version
2nd secondary output voltage
0 .. 0V
Degree of protection (IP)
IP20
1st secondary output voltage
12 .. 12V
Direct mounting possible
Stabilized
Rated supply voltage at DC
120 .. 375V
Rated supply voltage at AC 50 Hz
90 .. 264V
Rated supply voltage at AC 60 Hz
90 .. 264V
Nominal value output voltage 3
0V
Max. output current 2
0A
Nominal value output current 2
0A
Max. output current 3
0A
Degree of protection (NEMA)
1
Short-circuit-proof
3rd secondary output voltage
0 .. 0V
Nominal value output current 3
0A
SIL according to IEC 61508
None
Secondary voltage adjustable
Nominal value output voltage 2
0V
Performance level according to EN ISO 13849-1
None
Voltage type of supply voltage
AC/DC
Max. output current 1
0.83A
Type of electric connection
Screw connection
Nominal value output voltage 1
12V
Nominal value output current 1
0.83A
Power output
10W
Rail mounting possible
Width in number of modular spacings
1
Width
18mm
