Details
- •Low-voltage switchgear and control gear (automation)
- •DC-power supply
- •1 KOM
- •ABB
Technical specifications
Width53mm
Depth57.5mm
Height91mm
Built-in height91mm
Type of electric connectionScrew connection
Built-in width53mm
Rated supply voltage at AC 60 Hz90 - 264V
Modular versionYes
Direct mounting possibleNo
Wall mounting possibleNo
1st secondary output voltage12 - 12V
Power consumption31.2VA
Rated supply voltage at AC 50 Hz90 - 264V
2nd secondary output voltage0 - 0V
Width in number of modular spacings3
Voltage type of supply voltageAC/DC
Degree of protection (IP)IP20
3rd secondary output voltage0 - 0V
Suitable for safety functionsNo
Power output25W
Max. output current 12.1A
Performance level according to EN ISO 13849-1None
Rated supply voltage at DC120 - 375V
Short-circuit-proofYes
Max. output current 30A
Max. output current 20A
Nominal value output voltage 20V
Nominal value output voltage 30V
Nominal value output current 20A
Nominal value output current 30A
Degree of protection (NEMA)1
SIL according to IEC 61508None
Nominal value output voltage 112V
Nominal value output current 12.1A
Output voltage stabilizedYes
Secondary voltage adjustableYes
StabilizedYes
Rail mounting possibleYes
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

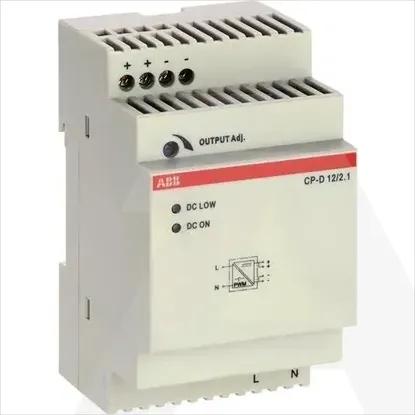

1SVR427043R1200 | CP-D 12/2.1
