Details
- •Low-voltage switchgear and control gear (automation)
- •DC-power supply
- •1 KOM
- •ABB
Technical specifications
Width in number of modular spacings-
Suitable for safety functionsNo
Built-in width150mm
Width150mm
Modular versionNo
Built-in height131mm
Depth119mm
Height131mm
Power consumption535VA
Wall mounting possibleNo
Rated supply voltage at DC480 - 820V
1st secondary output voltage48 - 48V
Rated supply voltage at AC 50 Hz340 - 575V
Short-circuit-proofYes
Max. output current 20A
Performance level according to EN ISO 13849-1None
2nd secondary output voltage0 - 0V
Rated supply voltage at AC 60 Hz340 - 575V
Direct mounting possibleNo
3rd secondary output voltage0 - 0V
SIL according to IEC 61508None
Nominal value output current 20A
Nominal value output current 30A
Type of electric connectionScrew connection
Nominal value output voltage 20V
Max. output current 30A
Nominal value output voltage 30V
Degree of protection (NEMA)1
Voltage type of supply voltageAC/DC
Max. output current 110A
Nominal value output voltage 148V
Nominal value output current 110A
Rail mounting possibleYes
Power output480W
Secondary voltage adjustableYes
Degree of protection (IP)IP20
Output voltage stabilizedYes
StabilizedYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

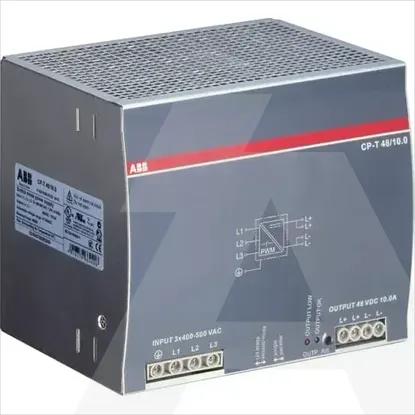

1SVR427055R2000 | CP-T 48/10.0
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage switchgear and control gear (automation)
- DC-power supply
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width in number of modular spacings
-
Suitable for safety functions
Built-in width
150mm
Width
150mm
Modular version
Built-in height
131mm
Depth
119mm
Height
131mm
Power consumption
535VA
Wall mounting possible
Rated supply voltage at DC
480 .. 820V
1st secondary output voltage
48 .. 48V
Rated supply voltage at AC 50 Hz
340 .. 575V
Short-circuit-proof
Max. output current 2
0A
Performance level according to EN ISO 13849-1
None
2nd secondary output voltage
0 .. 0V
Rated supply voltage at AC 60 Hz
340 .. 575V
Direct mounting possible
3rd secondary output voltage
0 .. 0V
SIL according to IEC 61508
None
Nominal value output current 2
0A
Nominal value output current 3
0A
Type of electric connection
Screw connection
Nominal value output voltage 2
0V
Max. output current 3
0A
Nominal value output voltage 3
0V
Degree of protection (NEMA)
1
Voltage type of supply voltage
AC/DC
Max. output current 1
10A
Nominal value output voltage 1
48V
Nominal value output current 1
10A
Rail mounting possible
Power output
480W
Secondary voltage adjustable
Degree of protection (IP)
IP20
Output voltage stabilized
Stabilized
