Details
- •Low-voltage industrial components
- •DC-power supply
- •1 KOM
- •ABB
Technical specifications
Depth119mm
Height131mm
Width150mm
Width in number of modular spacings-
Built-in width150mm
Built-in height131mm
Power consumption538VA
Modular versionNo
Suitable for safety functionsNo
Voltage type of supply voltageAC/DC
Degree of protection (IP)IP20
Wall mounting possibleNo
Output voltage stabilizedYes
Rated supply voltage at AC 50 Hz340 - 575V
Short-circuit-proofYes
Power output480W
StabilizedYes
Rail mounting possibleYes
Secondary voltage adjustableNo
2nd secondary output voltage0 - 0V
Performance level according to EN ISO 13849-1None
Max. output current 1-A
Rated supply voltage at AC 60 Hz340 - 575V
Type of electric connectionScrew connection
Direct mounting possibleNo
3rd secondary output voltage0 - 0V
1st secondary output voltage24 - 24V
Rated supply voltage at DC480 - 820V
Nominal value output voltage 30V
Max. output current 30A
Max. output current 20A
Nominal value output voltage 124V
Nominal value output current 20A
Nominal value output current 120A
Nominal value output voltage 20V
Nominal value output current 30A
SIL according to IEC 61508None
Degree of protection (NEMA)1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

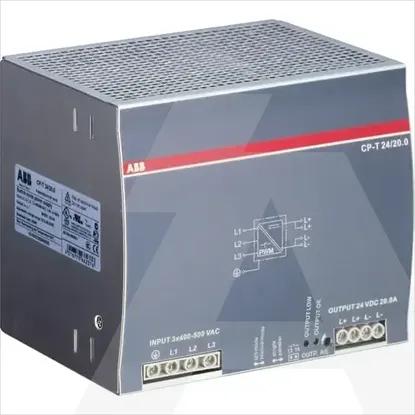

1SVR427056R0000 | CP-T 24/20.0
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- DC-power supply
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Depth
119mm
Height
131mm
Width
150mm
Width in number of modular spacings
-
Built-in width
150mm
Built-in height
131mm
Power consumption
538VA
Modular version
Suitable for safety functions
Voltage type of supply voltage
AC/DC
Degree of protection (IP)
IP20
Wall mounting possible
Output voltage stabilized
Rated supply voltage at AC 50 Hz
340 .. 575V
Short-circuit-proof
Power output
480W
Stabilized
Rail mounting possible
Secondary voltage adjustable
2nd secondary output voltage
0 .. 0V
Performance level according to EN ISO 13849-1
None
Max. output current 1
-A
Rated supply voltage at AC 60 Hz
340 .. 575V
Type of electric connection
Screw connection
Direct mounting possible
3rd secondary output voltage
0 .. 0V
1st secondary output voltage
24 .. 24V
Rated supply voltage at DC
480 .. 820V
Nominal value output voltage 3
0V
Max. output current 3
0A
Max. output current 2
0A
Nominal value output voltage 1
24V
Nominal value output current 2
0A
Nominal value output current 1
20A
Nominal value output voltage 2
0V
Nominal value output current 3
0A
SIL according to IEC 61508
None
Degree of protection (NEMA)
1
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
