Details
- •Low-voltage industrial components
- •DC-power supply
- •1 KOM
- •ABB
Technical specifications
Height100mm
Depth126.2mm
Width60mm
Built-in width60mm
Power consumption7VA
Built-in height100mm
Modular versionNo
Suitable for safety functionsNo
Width in number of modular spacings-
Wall mounting possibleNo
Rail mounting possibleYes
Output voltage stabilizedYes
Power output69W
Type of electric connectionScrew connection
StabilizedYes
1st secondary output voltage24 - 24V
Direct mounting possibleNo
Degree of protection (IP)IP20
Rated supply voltage at AC 50 Hz- - -V
Short-circuit-proofYes
Max. output current 20A
Max. output current 1-A
Secondary voltage adjustableNo
Rated supply voltage at DC24 - 24V
3rd secondary output voltage0 - 0V
Rated supply voltage at AC 60 Hz- - -V
Performance level according to EN ISO 13849-1None
Max. output current 30A
2nd secondary output voltage0 - 0V
Nominal value output voltage 20V
Nominal value output voltage 30V
Voltage type of supply voltageAC/DC
Nominal value output voltage 124V
Nominal value output current 13A
SIL according to IEC 61508None
Nominal value output current 30A
Nominal value output current 20A
Degree of protection (NEMA)1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

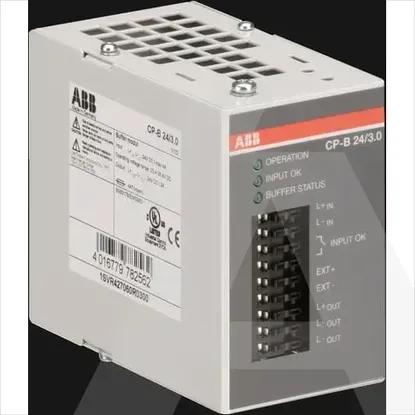

1SVR427060R0300 | CP-B 24/3.0
