Details
- •Low-voltage switchgear and control gear (automation)
- •DC-power supply
- •1 KOM
- •ABB
Technical specifications
Depth216mm
Height198mm
Width84mm
Built-in height198mm
Built-in width84mm
Power output480W
Modular versionNo
Width in number of modular spacings-
StabilizedYes
Direct mounting possibleNo
Suitable for safety functionsNo
Secondary voltage adjustableNo
1st secondary output voltage24 - 24V
Output voltage stabilizedYes
Wall mounting possibleNo
Power consumption40VA
3rd secondary output voltage0 - 0V
2nd secondary output voltage0 - 0V
Degree of protection (IP)IP20
Short-circuit-proofYes
Rated supply voltage at AC 50 Hz- - -V
Rated supply voltage at DC24 - 24V
Rated supply voltage at AC 60 Hz- - -V
Performance level according to EN ISO 13849-1None
Nominal value output current 30A
Max. output current 20A
Nominal value output voltage 30V
Max. output current 30A
Nominal value output voltage 20V
Nominal value output current 20A
Degree of protection (NEMA)1
SIL according to IEC 61508None
Voltage type of supply voltageDC
Nominal value output voltage 124V
Type of electric connectionPlug-in connection
Nominal value output current 120A
Rail mounting possibleYes
Max. output current 120A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

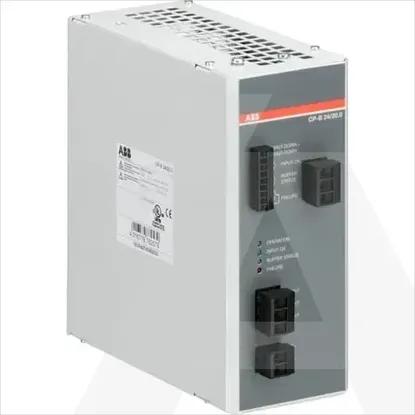

1SVR427060R2000 | CP-B 24/20.0
