Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Width17.5mm
Depth63mm
Height70mm
Rated control supply voltage Us at DC24 - 48V
Rated control supply voltage Us at AC 60HZ24 - 240V
Rated control supply voltage Us at AC 50HZ24 - 240V
Suitable for DIN rail (top hat rail) mountingYes
Voltage type for actuatingAC/DC
Type of electric connectionScrew connection
Remote operation possibleNo
With semiconductor outputNo
Time range0.05 - 360000s
Function delay-on energizationNo
Function flashing, starting with pause, fixed timeNo
Clock function, starting with pause, variableNo
Function flashing, starting with pulse, fixed timeYes
Clock function, starting with pulse, variableNo
Function floating contact on energizationNo
Function star-deltaNo
Suitable as remote controlNo
With plug-in socketNo
Function floating contact on de-energizationNo
Function delay on de-energizationNo
Pluggable on auxiliary contact blockNo
Outputs, reversible delayed/undelayedNo
Function pulse shapingNo
Number of outputs, undelayed, change-over contact1
Number of outputs, delayed, change-over contact1
Suitable for front mountingNo
Complete with socketNo
Suitable for front mountingNo
Number of outputs, undelayed, normally closed contact0
Number of outputs, undelayed, normally open contact0
Number of outputs, delayed, normally closed contact0
Number of outputs, delayed, normally open contact0
Operating voltage at AC 50 Hz250 - 250V
Operating voltage at AC 60 Hz250 - 250V
Operating voltage at DC- - -V
Voltage type (operating voltage)AC/DC
Max. starting current-A
Degree of protection (IP)IP20
Nominal current6A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

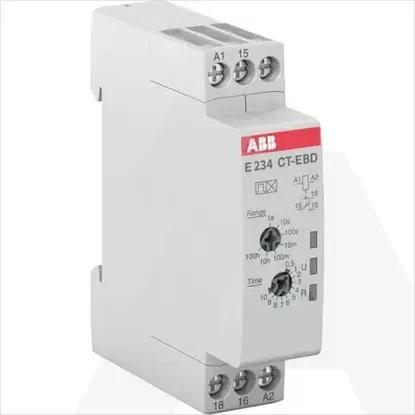

1SVR500150R0000 | CT-EBD
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width
17.5mm
Depth
63mm
Height
70mm
Rated control supply voltage Us at DC
24 .. 48V
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Suitable for DIN rail (top hat rail) mounting
Voltage type for actuating
AC/DC
Type of electric connection
Screw connection
Remote operation possible
With semiconductor output
Time range
0.05 .. 360000s
Function delay-on energization
Function flashing, starting with pause, fixed time
Clock function, starting with pause, variable
Function flashing, starting with pulse, fixed time
Clock function, starting with pulse, variable
Function floating contact on energization
Function star-delta
Suitable as remote control
With plug-in socket
Function floating contact on de-energization
Function delay on de-energization
Pluggable on auxiliary contact block
Outputs, reversible delayed/undelayed
Function pulse shaping
Number of outputs, undelayed, change-over contact
1
Number of outputs, delayed, change-over contact
1
Suitable for front mounting
Complete with socket
Suitable for front mounting
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Operating voltage at AC 50 Hz
250 .. 250V
Operating voltage at AC 60 Hz
250 .. 250V
Operating voltage at DC
- .. -V
Voltage type (operating voltage)
AC/DC
Max. starting current
-A
Degree of protection (IP)
IP20
Nominal current
6A
