Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Max. starting current-A
Nominal current-A
Height78mm
Depth78.5mm
Width22.5mm
Number of outputs, undelayed, normally open contact0
Function flashing, starting with pulse, fixed timeNo
With semiconductor outputNo
Function flashing, starting with pause, fixed timeNo
Suitable as remote controlNo
With plug-in socketNo
Function pulse shapingNo
Complete with socketNo
Function floating contact on energizationNo
Rated control supply voltage Us at DC- - -V
Function star-deltaNo
Time range- - -s
Clock function, starting with pulse, variableNo
Number of outputs, undelayed, normally closed contact0
Rated control supply voltage Us at AC 60HZ110 - 130V
Clock function, starting with pause, variableNo
Rated control supply voltage Us at AC 50HZ110 - 130V
Function floating contact on de-energizationNo
Remote operation possibleNo
Function delay on de-energizationNo
Type of electric connectionScrew connection
Number of outputs, delayed, normally closed contact0
Voltage type for actuatingAC
Number of outputs, undelayed, change-over contact0
Pluggable on auxiliary contact blockNo
Outputs, reversible delayed/undelayedNo
Operating voltage at AC 50 Hz- - -V
Operating voltage at DC- - -V
Suitable for front mountingNo
Operating voltage at AC 60 Hz- - -V
Number of outputs, delayed, normally open contact0
Function delay-on energizationYes
Number of outputs, delayed, change-over contact1
Suitable for DIN rail (top hat rail) mountingYes
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

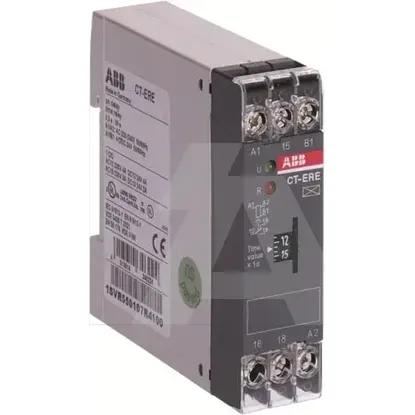

1SVR550100R5100 | CT-ERE 110VAC
