Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Height85.6mm
Function flashing, starting with pause, fixed timeNo
Suitable for front mountingNo
Nominal current4A
Function flashing, starting with pulse, fixed timeYes
Depth103.7mm
Clock function, starting with pause, variableNo
Remote operation possibleYes
Width22.5mm
Clock function, starting with pulse, variableNo
With plug-in socketNo
Suitable as remote controlNo
With semiconductor outputNo
Function pulse shapingYes
Function floating contact on energizationYes
Function delay-on energizationYes
Function delay on de-energizationYes
Rated control supply voltage Us at AC 60HZ24 - 240V
Number of outputs, undelayed, change-over contact2
Rated control supply voltage Us at DC24 - 240V
Function star-deltaYes
Number of outputs, delayed, normally closed contact0
Function floating contact on de-energizationYes
Time range0.05 - 1080000s
Number of outputs, undelayed, normally open contact0
Number of outputs, delayed, normally open contact0
Number of outputs, undelayed, normally closed contact0
Rated control supply voltage Us at AC 50HZ24 - 240V
Type of electric connectionScrew connection
Pluggable on auxiliary contact blockNo
Outputs, reversible delayed/undelayedYes
Suitable for DIN rail (top hat rail) mountingYes
Number of outputs, delayed, change-over contact2
Voltage type for actuatingAC/DC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

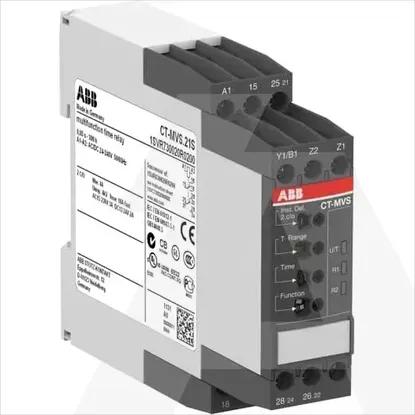

1SVR730020R0200 | CT-MVS.21S
