Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Width22.5mm
Depth103.7mm
Suitable for front mountingNo
Nominal current4A
Height85.6mm
Function flashing, starting with pause, fixed timeNo
Clock function, starting with pulse, variableNo
Clock function, starting with pause, variableNo
Suitable as remote controlNo
Function flashing, starting with pulse, fixed timeYes
With plug-in socketNo
Remote operation possibleNo
Function floating contact on energizationYes
Function floating contact on de-energizationYes
With semiconductor outputNo
Time range0.05 - 1080000s
Rated control supply voltage Us at AC 60HZ24 - 240V
Number of outputs, undelayed, normally closed contact0
Number of outputs, delayed, normally open contact0
Number of outputs, delayed, normally closed contact0
Rated control supply voltage Us at DC24 - 48V
Rated control supply voltage Us at AC 50HZ24 - 240V
Number of outputs, undelayed, normally open contact0
Number of outputs, undelayed, change-over contact1
Outputs, reversible delayed/undelayedNo
Pluggable on auxiliary contact blockNo
Type of excitationAnalogue with multi function
Function delay-on energizationYes
Suitable for DIN rail (top hat rail) mountingYes
Function delay on de-energizationYes
Type of electric connectionScrew connection
Function pulse shapingYes
Function star-deltaYes
Number of outputs, delayed, change-over contact2
Voltage type for actuatingAC/DC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

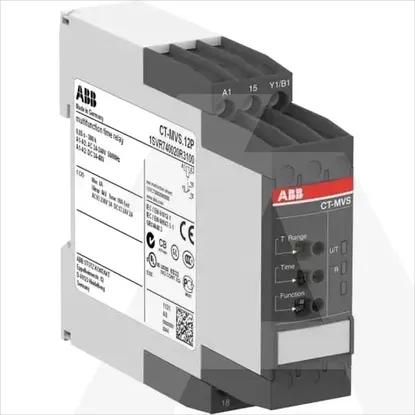

1SVR730020R3100 | CT-MVS.12S
