Technical specifications
Number of outputs, undelayed, normally closed contact0
Number of outputs, undelayed, normally open contact0
Number of outputs, delayed, normally closed contact0
Number of outputs, delayed, normally open contact0
Function star-deltaYes
Function floating contact on de-energizationYes
Function delay on de-energizationYes
Function floating contact on energizationYes
Function delay-on energizationYes
Function pulse shapingYes
Function flashing, starting with pause, fixed timeNo
Clock function, starting with pause, variableNo
Clock function, starting with pulse, variableNo
Function flashing, starting with pulse, fixed timeYes
Type of electric connectionScrew connection
Remote operation possibleNo
Pluggable on auxiliary contact blockNo
Rated control supply voltage Us at AC 60HZ24 - 240V
Suitable as remote controlNo
Rated control supply voltage Us at DC24 - 48V
Number of outputs, undelayed, change-over contact2
Voltage type for actuatingAC/DC
With semiconductor outputNo
Depth103.7mm
Suitable for DIN rail (top hat rail) mountingYes
Width22.5mm
Suitable for front mountingNo
Height85.6mm
With plug-in socketNo
Number of outputs, delayed, change-over contact2
Outputs, reversible delayed/undelayedNo
Rated control supply voltage Us at AC 50HZ24 - 240V
Time range0.05 - 1080000s
Nominal current4A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

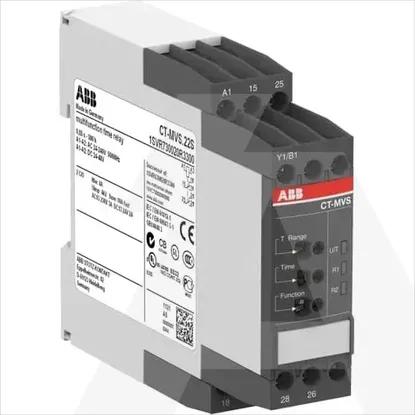

1SVR730020R3300 | CT-MVS.22S
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Function star-delta
Function floating contact on de-energization
Function delay on de-energization
Function floating contact on energization
Function delay-on energization
Function pulse shaping
Function flashing, starting with pause, fixed time
Clock function, starting with pause, variable
Clock function, starting with pulse, variable
Function flashing, starting with pulse, fixed time
Type of electric connection
Screw connection
Remote operation possible
Pluggable on auxiliary contact block
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Suitable as remote control
Rated control supply voltage Us at DC
24 .. 48V
Number of outputs, undelayed, change-over contact
2
Voltage type for actuating
AC/DC
With semiconductor output
Depth
103.7mm
Suitable for DIN rail (top hat rail) mounting
Width
22.5mm
Suitable for front mounting
Height
85.6mm
With plug-in socket
Number of outputs, delayed, change-over contact
2
Outputs, reversible delayed/undelayed
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Time range
0.05 .. 1080000s
Nominal current
4A
