Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Nominal current4A
Function flashing, starting with pause, fixed timeNo
Function floating contact on energizationNo
Clock function, starting with pulse, variableNo
Clock function, starting with pause, variableNo
Suitable as remote controlNo
Height85.6mm
With plug-in socketNo
Suitable for front mountingNo
Remote operation possibleNo
Function flashing, starting with pulse, fixed timeNo
With semiconductor outputNo
Depth103.7mm
Function floating contact on de-energizationNo
Rated control supply voltage Us at AC 50HZ24 - 240V
Function pulse shapingNo
Rated control supply voltage Us at AC 60HZ24 - 240V
Function star-deltaNo
Time range0.05 - 1080000s
Number of outputs, delayed, normally closed contact0
Number of outputs, delayed, normally open contact0
Pluggable on auxiliary contact blockNo
Number of outputs, undelayed, change-over contact2
Number of outputs, undelayed, normally closed contact0
Rated control supply voltage Us at DC24 - 240V
Number of outputs, undelayed, normally open contact0
Outputs, reversible delayed/undelayedNo
Function delay on de-energizationYes
Type of electric connectionScrew connection
Voltage type for actuatingAC/DC
Function delay-on energizationNo
Voltage type (operating voltage)AC/DC
Number of outputs, delayed, change-over contact2
Width22.5mm
Suitable for DIN rail (top hat rail) mountingYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

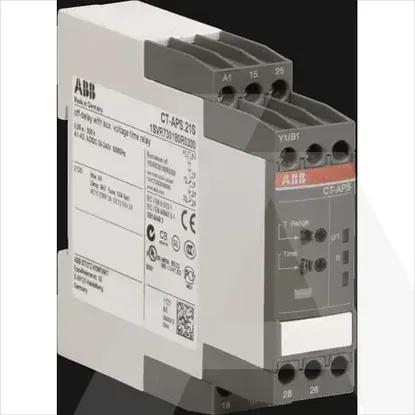

1SVR730180R0300 | CT-APS.21S
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Nominal current
4A
Function flashing, starting with pause, fixed time
Function floating contact on energization
Clock function, starting with pulse, variable
Clock function, starting with pause, variable
Suitable as remote control
Height
85.6mm
With plug-in socket
Suitable for front mounting
Remote operation possible
Function flashing, starting with pulse, fixed time
With semiconductor output
Depth
103.7mm
Function floating contact on de-energization
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Function pulse shaping
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Function star-delta
Time range
0.05 .. 1080000s
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Pluggable on auxiliary contact block
Number of outputs, undelayed, change-over contact
2
Number of outputs, undelayed, normally closed contact
0
Rated control supply voltage Us at DC
24 .. 240V
Number of outputs, undelayed, normally open contact
0
Outputs, reversible delayed/undelayed
Function delay on de-energization
Type of electric connection
Screw connection
Voltage type for actuating
AC/DC
Function delay-on energization
Voltage type (operating voltage)
AC/DC
Number of outputs, delayed, change-over contact
2
Width
22.5mm
Suitable for DIN rail (top hat rail) mounting
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
