Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Depth103.7mm
Suitable for front mountingNo
Height85.6mm
With plug-in socketNo
Function floating contact on energizationNo
Function pulse shapingNo
Function flashing, starting with pause, fixed timeNo
Suitable as remote controlNo
Remote operation possibleNo
Number of outputs, undelayed, normally open contact0
Number of outputs, undelayed, normally closed contact0
Clock function, starting with pause, variableNo
Rated control supply voltage Us at DC24 - 48V
Rated control supply voltage Us at AC 60HZ24 - 240V
Function floating contact on de-energizationNo
Time range0.05 - 1080000s
Function flashing, starting with pulse, fixed timeNo
Clock function, starting with pulse, variableNo
Pluggable on auxiliary contact blockNo
Outputs, reversible delayed/undelayedNo
Type of excitationAnalogue with single function
Type of electric connectionScrew connection
Suitable for DIN rail (top hat rail) mountingYes
Function delay-on energizationNo
Function delay on de-energizationYes
Function star-deltaNo
Number of outputs, delayed, normally open contact0
Number of outputs, delayed, change-over contact1
With semiconductor outputNo
Width22.5mm
Number of outputs, delayed, normally closed contact0
Number of outputs, undelayed, change-over contact0
Nominal current4A
Rated control supply voltage Us at AC 50HZ24 - 240V
Voltage type for actuatingAC/DC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

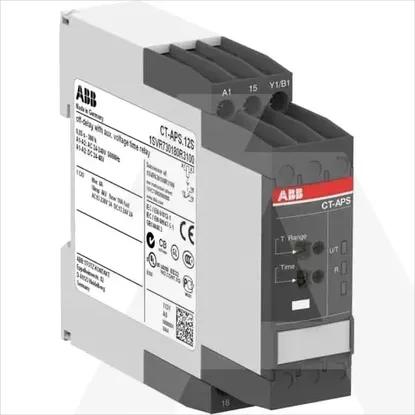

1SVR730180R3100 | CT-APS.12S
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Depth
103.7mm
Suitable for front mounting
Height
85.6mm
With plug-in socket
Function floating contact on energization
Function pulse shaping
Function flashing, starting with pause, fixed time
Suitable as remote control
Remote operation possible
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, normally closed contact
0
Clock function, starting with pause, variable
Rated control supply voltage Us at DC
24 .. 48V
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Function floating contact on de-energization
Time range
0.05 .. 1080000s
Function flashing, starting with pulse, fixed time
Clock function, starting with pulse, variable
Pluggable on auxiliary contact block
Outputs, reversible delayed/undelayed
Type of excitation
Analogue with single function
Type of electric connection
Screw connection
Suitable for DIN rail (top hat rail) mounting
Function delay-on energization
Function delay on de-energization
Function star-delta
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
1
With semiconductor output
Width
22.5mm
Number of outputs, delayed, normally closed contact
0
Number of outputs, undelayed, change-over contact
0
Nominal current
4A
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Voltage type for actuating
AC/DC
