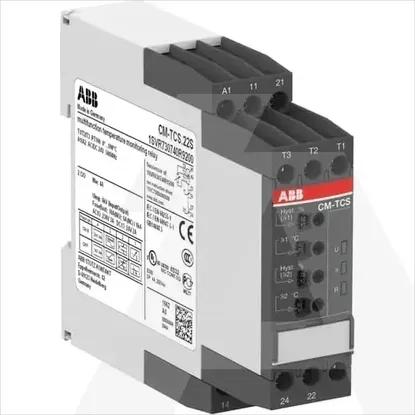

1SVR730740R9200 | CM-TCS.22S
Code: 1543672
ManufacturerABB
Catalog number1SVR730740R9200
TypeCM-TCS.22S
CategoryTemperature monitoring relay
EAN code4016779852753
Details
- •Relays
- •Temperature monitoring relay
- •1 KOM
- •ABB
Technical specifications
Height85.6mm
Depth103.7mm
Error registration possibleNo
Rated control supply voltage Us at AC 60HZ24 - 24V
Number of measuring circuits1
Voltage type for actuatingAC/DC
With detachable clampsNo
Rated control supply voltage Us at DC24 - 24V
Resistance measuring range- - -Ohm
External reset possibleNo
Rated control supply voltage Us at AC 50HZ24 - 24V
Type of electric connectionScrew connection
Connection type auxiliary circuitScrew connection
Number of contacts as normally open contact0
Number of contacts as normally closed contact0
Number of contacts as change-over contact2
Width22.5mm
Voltage type of supply voltageAC/DC
Temperature measuring range0 - 100°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SVR730740R9200 | CM-TCS.22S
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Temperature monitoring relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Height
85.6mm
Depth
103.7mm
Error registration possible
Rated control supply voltage Us at AC 60HZ
24 .. 24V
Number of measuring circuits
1
Voltage type for actuating
AC/DC
With detachable clamps
Rated control supply voltage Us at DC
24 .. 24V
Resistance measuring range
- .. -Ohm
External reset possible
Rated control supply voltage Us at AC 50HZ
24 .. 24V
Type of electric connection
Screw connection
Connection type auxiliary circuit
Screw connection
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
2
Width
22.5mm
Voltage type of supply voltage
AC/DC
Temperature measuring range
0 .. 100°C
