Details
- •Relays
- •Current monitoring relay
- •1 KOM
- •ABB
Technical specifications
Height85.6mm
Depth103.7mm
Contains function DC-voltage over currentYes
Single-phase hysteresis possibleYes
Function DC-current hysteresisYes
External current transformerNo
With detachable clampsNo
Current measuring range0.1 - 1A
Three-phase hysteresis possibleNo
Contains function DC-voltage under currentYes
Max. permitted off-delay time30s
Min. adjustable off-delay time0.1s
Number of contacts as normally open contact-
Min. adjustable delay-on energization time0.1s
Max. permitted delay-on energization time30s
Number of contacts as normally closed contact-
Rated control supply voltage Us at AC 60HZ24 - 240V
Rated control supply voltage Us at AC 50HZ24 - 240V
Rated control supply voltage Us at DC24 - 240V
Voltage type for actuatingAC/DC
Type of electric connectionScrew connection
Voltage type of supply voltageAC/DC
Type of currentAC/DC
Single-phase under current possibleYes
Three-phase over current possibleNo
Three-phase under current possibleNo
Single-phase over current possibleYes
Number of contacts as change-over contact2
Width22.5mm
Rated switch current4A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

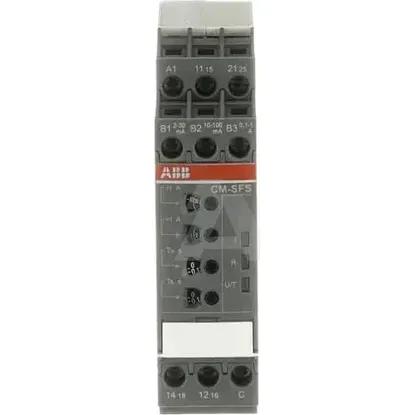

1SVR730760R0400 | CM-SFS.21S
