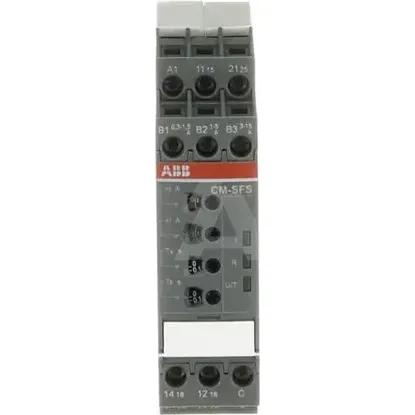

1SVR730760R0500 | CM-SFS.22S
Code: 1543676
ManufacturerABB
Catalog number1SVR730760R0500
TypeCM-SFS.22S
CategoryCurrent monitoring relay
EAN code4016779852142
Details
- •Relays
- •Current monitoring relay
- •1 KOM
- •ABB
Technical specifications
Depth103.7mm
Height85.6mm
Single-phase hysteresis possibleYes
Max. permitted off-delay time30s
With detachable clampsNo
Function DC-current hysteresisYes
Three-phase hysteresis possibleNo
Min. adjustable delay-on energization time0.1s
Rated control supply voltage Us at DC24 - 240V
Voltage type for actuatingAC/DC
Three-phase over current possibleNo
Three-phase under current possibleNo
Number of contacts as normally closed contact-
Min. adjustable off-delay time0.1s
Rated control supply voltage Us at AC 60HZ24 - 240V
Number of contacts as normally open contact-
External current transformerNo
Max. permitted delay-on energization time30s
Rated control supply voltage Us at AC 50HZ24 - 240V
Contains function DC-voltage over currentYes
Contains function DC-voltage under currentYes
Width22.5mm
Type of currentAC/DC
Single-phase under current possibleYes
Single-phase over current possibleYes
Type of electric connectionScrew connection
Number of contacts as change-over contact2
Current measuring range0.3 - 15A
Voltage type of supply voltageAC/DC
