Details
- •Relays
- •Voltage monitoring relay
- •1 KOM
- •ABB
Technical specifications
With detachable clampsNo
Depth103.7mm
Width22.5mm
Height85.6mm
Single-phase hysteresis possibleYes
Three-phase over voltage possibleNo
Three-phase under voltage possibleNo
Rated control supply voltage Us at AC 60HZ24 - 240V
Contains function DC-voltage hysteresisYes
Rated control supply voltage Us at DC24 - 240V
Type of electric connectionScrew connection
Rated control supply voltage Us at AC 50HZ24 - 240V
Type of voltage measuring rangeAC/DC
Three-phase hysteresis possibleNo
Voltage measuring range 13 - 600V
Voltage measuring range 2- - -V
Voltage type for actuatingAC/DC
Response value voltage3 - 600V
Single-phase under voltage possibleYes
Single-phase over voltage possibleYes
Contains function DC-under voltageYes
Contains function DC-over voltageYes
Max. permitted delay-on energization time30s
Min. adjustable delay-on energization time0s
Max. permitted off-delay time30s
Min. adjustable off-delay time0s
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Number of contacts as change-over contact2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

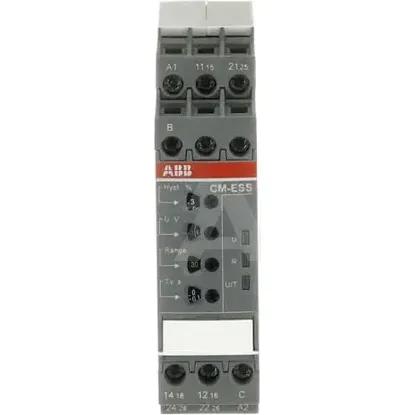

1SVR730830R0400 | CM-ESS.2S
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Voltage monitoring relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
With detachable clamps
Depth
103.7mm
Width
22.5mm
Height
85.6mm
Single-phase hysteresis possible
Three-phase over voltage possible
Three-phase under voltage possible
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Contains function DC-voltage hysteresis
Rated control supply voltage Us at DC
24 .. 240V
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Type of voltage measuring range
AC/DC
Three-phase hysteresis possible
Voltage measuring range 1
3 .. 600V
Voltage measuring range 2
- .. -V
Voltage type for actuating
AC/DC
Response value voltage
3 .. 600V
Single-phase under voltage possible
Single-phase over voltage possible
Contains function DC-under voltage
Contains function DC-over voltage
Max. permitted delay-on energization time
30s
Min. adjustable delay-on energization time
0s
Max. permitted off-delay time
30s
Min. adjustable off-delay time
0s
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
