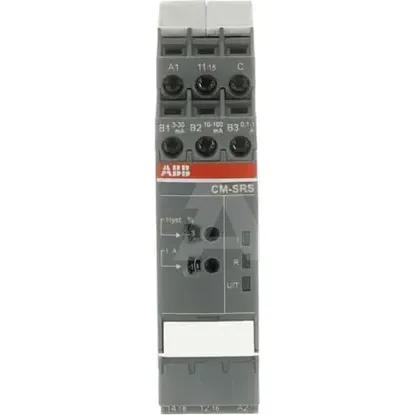

1SVR730840R0200 | CM-SRS.11S
Code: 1543692
ManufacturerABB
Catalog number1SVR730840R0200
TypeCM-SRS.11S
CategoryCurrent monitoring relay
EAN code4016779852227
Details
- •Relays
- •Current monitoring relay
- •1 KOM
- •ABB
Technical specifications
Max. permitted off-delay time-s
Min. adjustable off-delay time-s
Max. permitted delay-on energization time-s
Min. adjustable delay-on energization time-s
Single-phase hysteresis possibleYes
With detachable clampsNo
Three-phase hysteresis possibleNo
Contains function DC-voltage under currentYes
Contains function DC-voltage over currentYes
Rated control supply voltage Us at AC 50HZ24 - 240V
Voltage type for actuatingAC/DC
Height85.6mm
Rated control supply voltage Us at DC24 - 240V
Depth103.7mm
Rated control supply voltage Us at AC 60HZ24 - 240V
Function DC-current hysteresisYes
External current transformerNo
Type of currentAC/DC
Single-phase under current possibleYes
Type of electric connectionScrew connection
Three-phase under current possibleNo
Three-phase over current possibleNo
Single-phase over current possibleYes
Number of contacts as change-over contact1
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Width22.5mm
Current measuring range0.1 - 1A
Voltage type of supply voltageAC/DC
Rated switch current4A
