Details
- •Relays
- •Current monitoring relay
- •1 KOM
- •ABB
Technical specifications
External current transformerNo
Single-phase hysteresis possibleYes
Height85.6mm
With detachable clampsNo
Depth103.7mm
Current measuring range0.3 - 15A
Three-phase hysteresis possibleNo
Contains function DC-voltage under currentYes
Function DC-current hysteresisYes
Contains function DC-voltage over currentYes
Max. permitted delay-on energization time-s
Max. permitted off-delay time-s
Rated control supply voltage Us at AC 50HZ24 - 240V
Rated control supply voltage Us at DC24 - 240V
Min. adjustable off-delay time-s
Min. adjustable delay-on energization time-s
Voltage type for actuatingAC/DC
Rated control supply voltage Us at AC 60HZ24 - 240V
Type of electric connectionScrew connection
Voltage type of supply voltageAC/DC
Type of currentAC/DC
Single-phase under current possibleYes
Three-phase under current possibleNo
Single-phase over current possibleYes
Three-phase over current possibleNo
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Number of contacts as change-over contact1
Width22.5mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

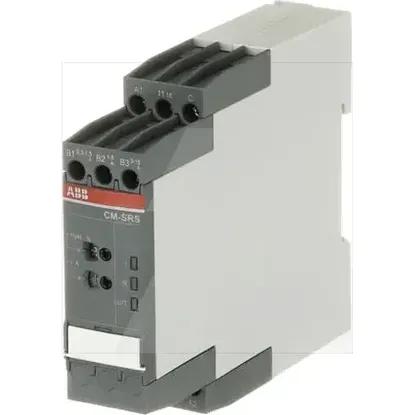

1SVR730840R0300 | CM-SRS.12S
