Details
- •Relays
- •Current monitoring relay
- •1 KOM
- •ABB
Technical specifications
Height85.6mm
Three-phase hysteresis possibleNo
Single-phase hysteresis possibleYes
Three-phase under current possibleNo
With detachable clampsNo
Depth103.7mm
Single-phase under current possibleYes
Width22.5mm
External current transformerNo
Current measuring range0.1 - 1A
Max. permitted off-delay time30s
Number of contacts as change-over contact2
Max. permitted delay-on energization time-s
Min. adjustable delay-on energization time-s
Rated control supply voltage Us at DC24 - 240V
Type of electric connectionScrew connection
Single-phase over current possibleYes
Function DC-current hysteresisYes
Contains function DC-voltage over currentYes
Number of contacts as normally closed contact-
Rated control supply voltage Us at AC 60HZ24 - 240V
Three-phase over current possibleNo
Voltage type for actuatingAC/DC
Number of contacts as normally open contact-
Rated control supply voltage Us at AC 50HZ24 - 240V
Min. adjustable off-delay time0.1s
Contains function DC-voltage under currentYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

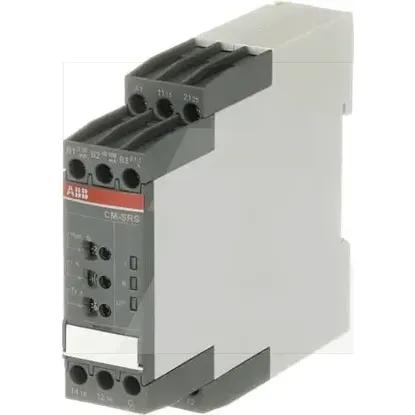

1SVR730840R0400 | CM-SRS.21S
