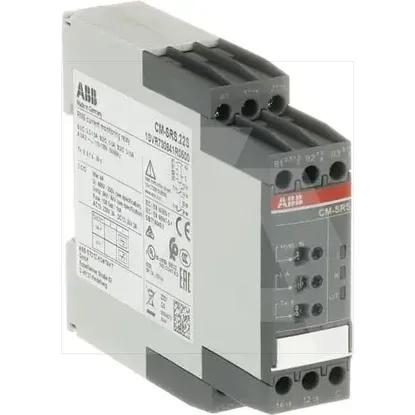

1SVR730841R0500 | CM-SRS.22S
Code: 1543701
ManufacturerABB
Catalog number1SVR730841R0500
TypeCM-SRS.22S
CategoryCurrent monitoring relay
EAN code4016779852319
Details
- •Relays
- •Current monitoring relay
- •1 KOM
- •ABB
Technical specifications
Three-phase under current possibleNo
External current transformerNo
Depth103.7mm
Three-phase over current possibleNo
Contains function DC-voltage under currentYes
Height85.6mm
With detachable clampsNo
Function DC-current hysteresisYes
Rated control supply voltage Us at AC 50HZ110 - 130V
Contains function DC-voltage over currentYes
Three-phase hysteresis possibleNo
Rated control supply voltage Us at AC 60HZ110 - 130V
Single-phase hysteresis possibleYes
Min. adjustable off-delay time0.1s
Min. adjustable delay-on energization time-s
Max. permitted delay-on energization time-s
Voltage type for actuatingAC
Rated control supply voltage Us at DC- - -V
Number of contacts as normally open contact-
Max. permitted off-delay time30s
Number of contacts as normally closed contact-
Single-phase over current possibleYes
Single-phase under current possibleYes
Type of electric connectionScrew connection
Number of contacts as change-over contact2
Width22.5mm
Current measuring range0.3 - 15A
Voltage type of supply voltageAC
