Details
- •Relays
- •Current monitoring relay
- •1 KOM
- •ABB
Technical specifications
Depth103.7mm
With detachable clampsNo
Three-phase hysteresis possibleNo
Single-phase hysteresis possibleYes
External current transformerNo
Three-phase under current possibleNo
Single-phase under current possibleYes
Single-phase over current possibleYes
Three-phase over current possibleNo
Width22.5mm
Current measuring range0.1 - 1A
Contains function DC-voltage under currentYes
Rated control supply voltage Us at AC 60HZ220 - 240V
Rated control supply voltage Us at AC 50HZ220 - 240V
Function DC-current hysteresisYes
Contains function DC-voltage over currentYes
Type of electric connectionScrew connection
Max. permitted off-delay time-s
Max. permitted delay-on energization time-s
Rated control supply voltage Us at DC- - -V
Min. adjustable delay-on energization time-s
Height85.6mm
Voltage type for actuatingAC
Number of contacts as change-over contact1
Number of contacts as normally open contact-
Number of contacts as normally closed contact-
Min. adjustable off-delay time-s
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

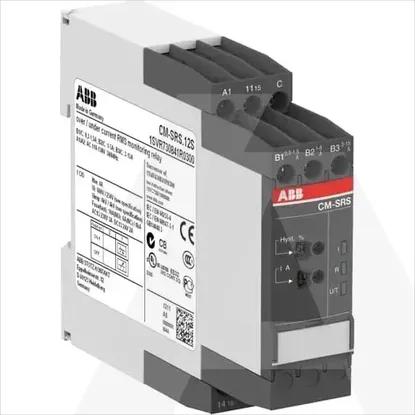

1SVR730841R1200 | CM-SRS.11S
