Details
- •Relays
- •Phase monitoring relay
- •1 KOM
- •ABB
Technical specifications
With detachable clampsNo
Depth103.7mm
Width22.5mm
Height85.6mm
Voltage measuring range300 - 500V
Function over voltage detectionYes
Function under voltage detectionYes
Phase failure detectionYes
Phase sequence monitoringYes
Phase imbalance monitoringYes
Rated control supply voltage Us at AC 50HZ300 - 500V
Rated control supply voltage Us at DC- - -V
Number of contacts as normally closed contact-
Rated control supply voltage Us at AC 60HZ300 - 500V
Min. adjustable off-delay time0.1s
Voltage type for actuatingAC
Type of electric connectionScrew connection
Min. adjustable delay-on energization time0.2s
Number of contacts as normally open contact-
Max. permitted off-delay time30s
Max. permitted delay-on energization time0.2s
Number of contacts as change-over contact2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

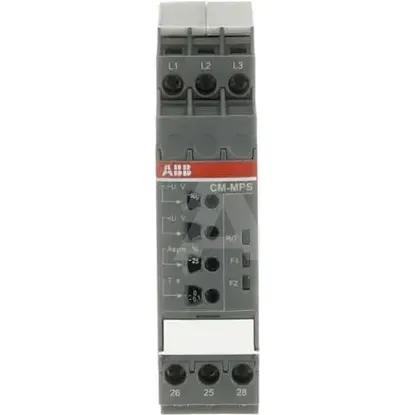

1SVR730884R3300 | CM-MPS.41S
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Phase monitoring relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
With detachable clamps
Depth
103.7mm
Width
22.5mm
Height
85.6mm
Voltage measuring range
300 .. 500V
Function over voltage detection
Function under voltage detection
Phase failure detection
Phase sequence monitoring
Phase imbalance monitoring
Rated control supply voltage Us at AC 50HZ
300 .. 500V
Rated control supply voltage Us at DC
- .. -V
Number of contacts as normally closed contact
-
Rated control supply voltage Us at AC 60HZ
300 .. 500V
Min. adjustable off-delay time
0.1s
Voltage type for actuating
AC
Type of electric connection
Screw connection
Min. adjustable delay-on energization time
0.2s
Number of contacts as normally open contact
-
Max. permitted off-delay time
30s
Max. permitted delay-on energization time
0.2s
Number of contacts as change-over contact
2
