Details
- •Relays
- •Phase monitoring relay
- •1 KOM
- •ABB
Technical specifications
Depth103.7mm
With detachable clampsNo
Height85.6mm
Width22.5mm
Type of electric connectionScrew connection
Voltage measuring range300 - 500V
Rated control supply voltage Us at AC 50HZ300 - 500V
Max. permitted delay-on energization time0.2s
Rated control supply voltage Us at AC 60HZ300 - 500V
Min. adjustable delay-on energization time0.2s
Max. permitted off-delay time30s
Rated control supply voltage Us at DC- - -V
Voltage type for actuatingAC
Min. adjustable off-delay time0.1s
Phase sequence monitoringYes
Phase failure detectionYes
Function under voltage detectionYes
Function over voltage detectionYes
Phase imbalance monitoringYes
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Number of contacts as change-over contact2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

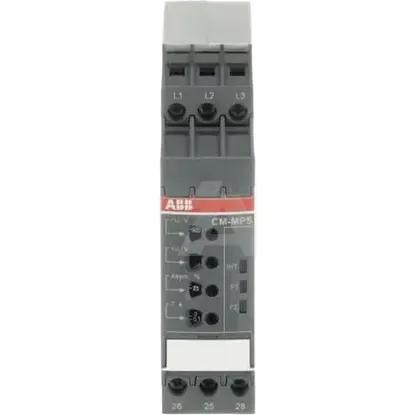

1SVR730884R4300 | CM-MPS.43S
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Phase monitoring relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Depth
103.7mm
With detachable clamps
Height
85.6mm
Width
22.5mm
Type of electric connection
Screw connection
Voltage measuring range
300 .. 500V
Rated control supply voltage Us at AC 50HZ
300 .. 500V
Max. permitted delay-on energization time
0.2s
Rated control supply voltage Us at AC 60HZ
300 .. 500V
Min. adjustable delay-on energization time
0.2s
Max. permitted off-delay time
30s
Rated control supply voltage Us at DC
- .. -V
Voltage type for actuating
AC
Min. adjustable off-delay time
0.1s
Phase sequence monitoring
Phase failure detection
Function under voltage detection
Function over voltage detection
Phase imbalance monitoring
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
