Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Suitable as remote controlNo
Depth103.7mm
Function flashing, starting with pause, fixed timeNo
Time range0.05 - 1080000s
Suitable for front mountingNo
Clock function, starting with pause, variableNo
Nominal current4A
Remote operation possibleNo
Function floating contact on energizationYes
Height85.6mm
Function star-deltaYes
With semiconductor outputNo
Width22.5mm
Function delay-on energizationYes
Function delay on de-energizationYes
Clock function, starting with pulse, variableNo
With plug-in socketNo
Function flashing, starting with pulse, fixed timeYes
Type of electric connectionSpring clamp connection
Function pulse shapingYes
Function floating contact on de-energizationYes
Rated control supply voltage Us at DC- - -V
Pluggable on auxiliary contact blockNo
Number of outputs, undelayed, change-over contact2
Number of outputs, delayed, change-over contact2
Number of outputs, delayed, normally open contact0
Rated control supply voltage Us at AC 50HZ380 - 440V
Rated control supply voltage Us at AC 60HZ380 - 440V
Voltage type for actuatingAC
Number of outputs, undelayed, normally closed contact0
Outputs, reversible delayed/undelayedNo
Suitable for DIN rail (top hat rail) mountingYes
Number of outputs, delayed, normally closed contact0
Number of outputs, undelayed, normally open contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

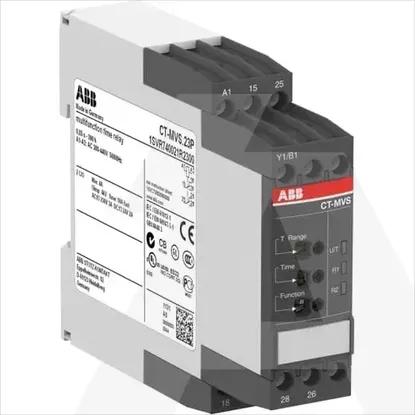

1SVR740021R2300 | CT-MVS.23P
